Indoor Environment Testing Under LED Lighting
Reproduce Real Indoor Conditions with Precision
Products used in modern indoor environments are constantly exposed to LED lighting, temperature variations, and humidity. These conditions can significantly affect material durability, color stability, and overall product performance. As global regulations on mercury—such as those under the Minamata Convention on Mercury—continue to tighten, along with increasing demand for energy efficiency and longer product lifecycles, LED lighting is rapidly becoming the standard in indoor environments. Our advanced testing solution is designed to accurately reproduce these real-world indoor conditions by combining LED lighting with precise temperature and humidity control. This enables reliable evaluation of material behavior under today’s evolving indoor environments.

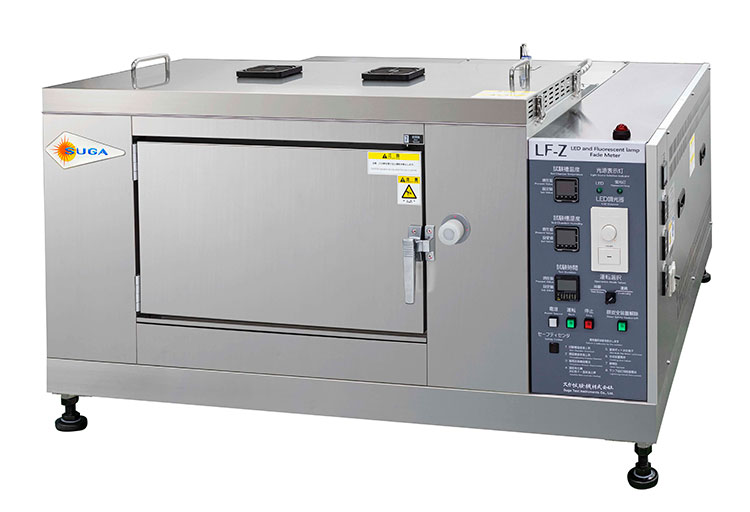

LED Fade Meter LF-Z
3 Key Features
- One Unit, Multiple Light Sources
- By changing the light source, it is able to test two types of white LEDs, cool white LED and warm white LED*. Since the light source is unitized, it can be easily changed. A white fluorescent lamp unit is also available.
- Illumination 35,000 to 70,000 lx
- Illuminance on the specimen surface can be precisely adjusted from 35,000 to 70,000 lx using an integrated controller, for a wide range of LED lighting conditions, including cool white LED, daylight LED, warm white LED, neutral white LED, and full spectrum LED.
- Indoor Environment Simulation
- In addition to LED lighting, precise control of temperature and humidity makes it ideal for accurately reproducing indoor environments.
Specifications
| LED Fade Meter LF-Z | |
|---|---|
| Illumination | White LED : approx. 35,000 to 70,000lx |
| (Measured at a specimen position 50mm from the light source) |
White fluorescent lamp : approx. 25,000lx (Switchable by replacing the light source) |
| Specimen Stage Dimensions | Approx. W52×D28cm / W20.5 × D11.0 inch |
| Test Chamber Dimensions | Approx. W100×D40×H40cm / W39.4 × D15.7 × H15.7 inch |
| External Dimensions | Approx. W134×D130×H78cm / W52.8 × D51.2 × H30.7 inch |
| Temperature & Humidity | Temperature 15 to 32°C |
| Humidity 50%rh (at 23°C) | |
| Power Supply Requirement | 3phase, 200V, approx. 18A *Step-down transformer is available |
| Weight | Approx. 210kg / 463.0 lb |

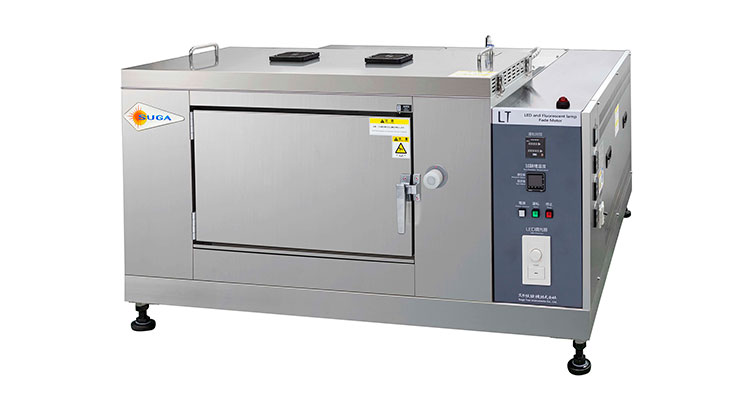

LED Fade Meter LT-1
The LT-1 is a standard stationary model equipped with a white LED light source. Compared to the rotating LR-1, it accommodates larger test samples and enables testing under higher illuminance conditions.
Features
- Easy Sample Handling: The slide-in tray design allows for quick and effortless installation and removal from the main unit.
- Supports Thick Samples: Removing the sample tray enables testing of thicker specimens.
- Precise Temperature Control: Chamber temperature is regulated via an external air intake control valve, allowing operation at ambient (room) temperature +10°C.
Specifications
| LED Fade Meter LT-1 | |
|---|---|
| White LED Types | Color Temperature : 3,000 Kelvin / 5,000 Kelvin *selectable at the time of order |
| Illumination *at the specimen surface | 35,000 to 70,000lx (No illuminance indication) |
| Specimen Size / Capacity | Specimen Stage: Approx. W52 × D28 cm / W1.71 × D0.92 ft |
| Test Chamber Dimensions | Approx. W100 × D40 × H40 cm / W3.28 × D1.31 × H1.31 ft |
| External Dimensions | Approx. W134 × D90 × H80 cm / W4.40 × D2.95 × H2.62 ft |
| Temperature & Humidity | Temperature: Room Temperature (RT) + 10°C *Depending on the illuminance |
| Humidity: Not controlled | |
| Power Supply Requirement | Single phase, 100V, approx. 5A *Step-down transformer is available |
| Weight | Approx. 190kg / 418.9 lb |

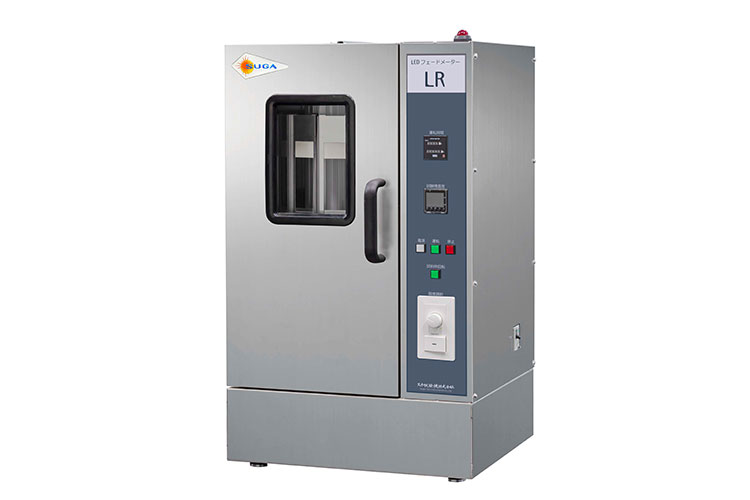

LED Fade Meter LR-1
The LR-1 is a compact, tabletop standard model equipped with a white LED light source and a rotating mechanism.
Features
- Uniform Exposure: Specimens are mounted on a dedicated holder, while the rotating sample frame ensures consistent illumination and temperature distribution across all samples.
- Accurate Temperature Control: The chamber temperature is precisely regulated using heat generated by the LED lighting system combined with an external air intake control valve, maintaining conditions at ambient temperature (RT/Room Temp.) +10°C.
- Compact & Efficient Design: Its tabletop footprint allows easy installation in limited spaces without compromising performance.
- Optimized for Modern Materials: Specifically engineered to evaluate light-induced degradation in today’s LED-lit environments.
Specifications
| LED Fade Meter LR-1 | |
|---|---|
| White LED Types | Color Temperature : 3,000 Kelvin / 5,000 Kelvin *selectable at the time of order |
| Illumination *at the specimen surface | 3,000 to 30,000lx (No illuminance indication) |
| Specimen Size / Capacity | 150 × 70 mm (5.9 × 2.8 in), up to 24 specimens |
| Test Chamber Dimensions | Approx. W38 × D36 × H71 cm / W1.25 × D1.18 × H2.33 ft |
| External Dimensions | Approx. W55 × D49 × H97 cm / W1.80 × D1.61 × H3.18 ft |
| Temperature & Humidity | Temperature: Room Temperature (RT) + 10°C *Depending on the illuminance |
| Humidity: Not controlled | |
| Power Supply Requirement | Single phase, 100V, approx. 2A *Step-down transformer is available |
| Weight | Approx. 60kg / 132.3 lb |
Applications Across Industries
Indoor environment testing is essential for a wide range of industries:
- Automotive interior materials (dashboards, trims, coatings)
- Plastics and polymers (discoloration and degradation)
- Textiles and apparel (color fastness and durability)
- Paints and coatings (indoor performance evaluation)
- Consumer electronics (housings and display components)
- Building materials (flooring, wall coverings, interior finishes)
Custom specifications are available. Please contact us to discuss your requirements—our team will be happy to assist.
