New Features of SMS-500 Ver. 2.0

Application of a new shock testing method (joint development in cooperation with Technology Research Institute of Osaka Prefecture)
The new testing method and data processing are executed by controlling the shock tester in 2 modes, ASQ mode (detail test) and MSDT mode (handy test).
Handy conditions setting
Test conditions for acceleration measurement can be set easily.
Inverse operation of sine half wave from SRS
Sine half wave conditions are calculated by designating an SRS profile.
Optional tolerance display of SRS
A tolerance bar can be read and displayed from a text file in the course of SRS analysis.
Automatic setting of tolerance bar
The acceleration waveform and SRS tolerance bar are set automatically to display the decision whether it is acceptable or not.
Simultaneous screen display of other data
Plural acceleration data can be displayed concurrently on the same screen.
SM-400 data read
Measuring data of SM-400 (unit before one generation) can be read.
Applicable OS
Windows2000 / XP / 7 (32bit, 64bit)

Features

10-channel acceleration amplifier
(Piezoelectric type, amplifier built-in type, resistance wire type amplifier)
Digital filter function
An optional low-pass filter can be acted to a measured acceleration waveform. The filter can be changed even after data measurement.
3-directional composite acceleration
Three-axis generating acceleration can be composed when dropping a packaged cargo or the like.
Buffer material evaluation
The effects of package buffer material can be confirmed by calculating an acceleration ? displacement diagram after calculating a deformation waveform from the acceleration generated in a packaged cargo.
SR/SRS analysis
The acceleration generated in a product differ every internal part even in case of the same product. The effects to a product can be understood by calculating them assuming that each part is an ideal spring model.
Test standard evaluation
Whether generated shock pulses conform to the standard or not must be evaluated in the course of the shock test. In SM-500, the standard evaluation conforming to the waveform can be done.
Continuous test processing
When executing the shock/drop tests continuously, data in each time can be processed automatically by using the continuous test mode.
Report preparation
A report can be prepared by optionally setting the test results (acceleration, SR/SRS displacement, etc.)
An arithmetic function is provided
Specified shock pulses must be generated for the shock test. In SM-500, the test can be done easily by selecting the drop height and buffer as shock test conditions, and then, simply by inputting the test acceleration, pulse duration, and sample weight.

Applications

  • Shock tester control
  • Acceleration measurement when dropping a product
  • Damage boundary test
  • Buffer evaluation of a packaged cargo, etc.

3axis acceleration composite waveform

3axis acceleration composite waveform

Displacement analysis

Displacement analysis

Shock Response Spectrum Analysis

Analyzing the generated acceleration by SR / SRS, you can check acceleration and displacement affecting all parts of the product.

<What is SRS ?>
Shock Responce Spectrum, SRS, shows the shock characteristics of generated shock pulse by plotting the maximum acceleration (shock response: SR) of a spring-mass model with various natural frequencies via a mathmatical calculation.

Analyzing the generated acceleration by SR / SRS,

Analyzing the generated acceleration by SR / SRS,

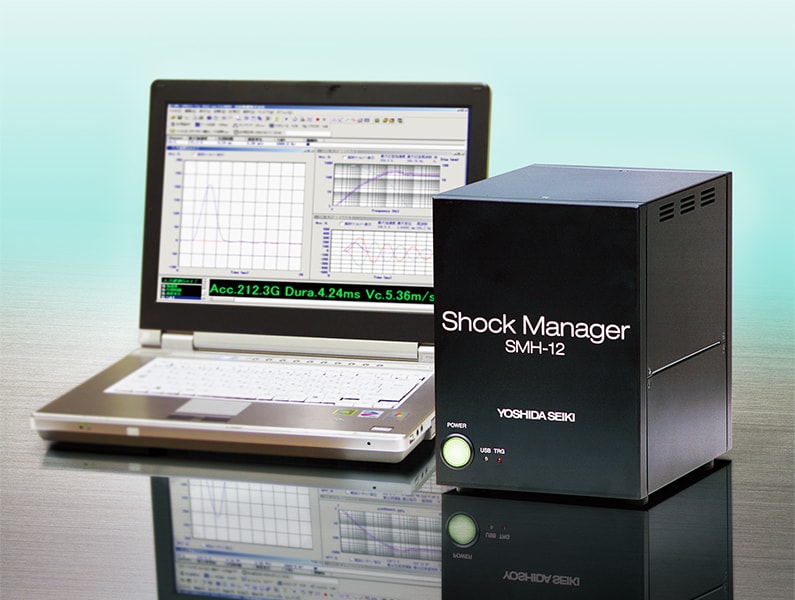

Acceleration Measurement Hard Ware: Model SMH-12

Model SMH-12
Availability of channels ※ Strain gauge type 1 channel
Voltage 1 channel (DC±100V)
Piezoelectric type 5 or 10 channels
Built-in amplifier piezoelectric type 5 or 10 channels
A/D Convertor Channels Max 12 channels
Sampling rate Max 1MHz
Resolution 16bit
Size (W × D × H mm) 150 × 200 × 200
Power supply AC100 ~ 240V
Interface USB1.1
Operation environment temperature : 0 ~ 40℃
humidity : below 85 % (No condensing)

※Piezoelectric type and built-in amplifier piezoelectric type can combine every 5 chennels

Acceleration Amplifier Selections

Model Combination content
SMH-12-C5 Piezoelectric type 5ch
SMH-12-C10 Piezoelectric type 10ch
SMH-12-A5 Built-in amplifier piezoelectric type 5ch
SMH-12-A10 Built-in amplifier piezoelectric type 10ch
SMH-12-C5A5 Piezoelectric type 5ch+Built-in amplifier piezoelectric type 5ch

Acceleration pickup

Model Weight(g) Rated acceleration
(m/s²)
Measurement frequency range(Hz) Applicable equipment Manufacturer
Piezoelectric type
2350 27 100000 1 ~ 25000 Shock Manager
SM-500
Showa Sokki Corporation
2358 12 50000 1 ~ 15000 Shock Manager
SM-500
Showa Sokki Corporation
2226C 2.8 20000 1 ~ 5000 Shock Manager
SM-500
Endevco
Strain gauge type
TAH-5KMS 8 5000 0 ~ 3000 Shock Manager
SM-500
Tencer Co.,Ltd.

Software: SMS-500

Model SMS-500
Measurement function Processable waveform : Half-sine / Trapezoidal / Sawtooth / Rectangular wave / Triangular wave
Number of channel : 12
Acceleration measuring range : 1.0 ~ 980000m/s² (0.1 ~ 100000G)
Duration measuring range : 0.01 ~ 99.99ms
Speed variation measuring range : 0.01 ~ 99.99m/s
Measurement error : ±1% or below
Digital filter function Available for each channel
Automatic processing (variable from 5 to 20 times of the fundamental waveform)
Arbitrary setting : 0.01 ~ 100000Hz (arbitrary changeable even after data is recorded)
Evaluation function SR / SRS analysis
Creation of fundamental waveforms
Displacement analysis
3 axis acceleration synthesis function
Data output Automatic report creation (Word output), conversion of each data text
Recomended PC OS:Windows 2000/7/10 (32/64bit)
Main memory 256 MB or more, HDD 100 MB or more free space, CD-ROM drive, USB port
