Feature

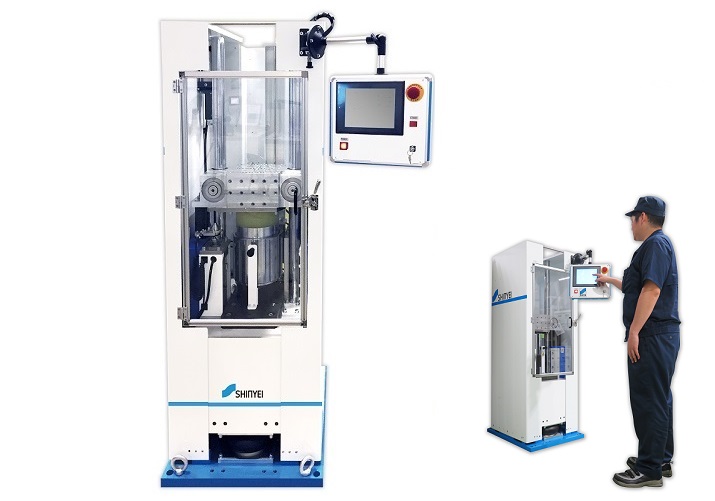

  • Pull-down type Shock Test Machine (patent pending)
  • Compact size (about 50% downsizing comparison with the conventional free-fall style Shock Test Machine)
  • Shock pulse up to 300,000m/s² (30,000G) by dual-shock amplifier
  • Selectable of 2 models (multi-shock generator or single cushioning pad)
  • High repeatability
  • Safety accessories are standard equipment

Applied Standard

  • JEDEC(JESD22-B111)
  • JEITA(ET-7409/106)
  • MIL-STD-810F
  • IEC 60068-2-27-87
  • JIS C 60068-2-27

PDST Movie

Applications

This shock tester applies to a high shock acceleration for computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

Specification

Model PDST-230M PDST-230S
Table size(mm) 236 × 236
Testable mass(kg) up to 20
Shock pulse shape Half-sine
Shock acceleration
range(m/s²)
490 ~ 7840(50 ~ 800G) 1470 ~ 22540(150 ~ 2300G)
Optional shock
acceleration range(m/s²)
98,000 (10,000G) ~ 294,000 (30,000G) at 0.07 ~ 0.2 ms * HGP-150 use
Pulse duration
range (ms)
2.5 ~ 20(multi-shock generator) 0.5 / 1 / 3(single cushioningg pad)
* select 1 in 3 programmers
Velocity change(m/s) 15 max.
Base Pneumatic springs and hydraulic damper device
Break system Pneumatic-hydraulic brake system
Test mode Single shot / Multi-shock mode
Size
(W × D × H mm)
650 × 800 × 1800
Capacity (kg) 1500
Power supply 100~240VAC
Air supply over 0.8MPa and 350dm³

Option for PDST230

Additional programmer Shock programmers (duration is 0.5ms, 1ms, 3ms) are lined-up for additional order
Shock Manager
SM-500
Measurement instrument for shock acceleration, Shock Manager SM-500
Dual-shock amplifier High acceleration about 300,000m/s²(30,000G) are generated when shock duration time is 0.2 / 0.5 / 1 / 2 by HGP series.
Safety equipment Signal light for safety
Others Air compressor, Acceleration pick-up
