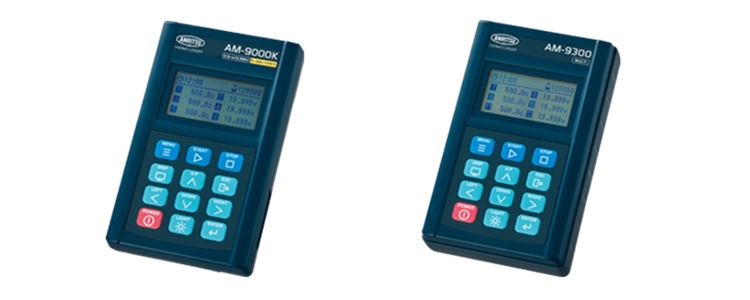

  5. Model AM-9000 series

Specification

List of Specifications

Model AM-9000※ AM-9100※ AM-9200 AM-9300
Channel 6CH 12CH 6CH 12CH
Input connector ANP connector (same type thermocouple) ANP connector (both poles are coper)
Input type Temperature:E, K, J, T, R by selected model *2
DC Voltage:V		 Temperature:Multi-input (E･K･J･T･R)
DC Voltage:V
Measurement range Temperature: TABLE Ⅰ
DC Voltage : ±20.000V
Resolution Temperature: 0.1℃/1℃
DC Voltage : 0.001V
Measurement accuracy Temperature: TABLE Ⅱ
DC Voltage : ±(0.05% of reading +0.003V)
Memory capacity 120,000 data
Interface USB2.0(microｰB)
Dimensions
(W)×(H)×(D)mm
*Protruded parts excluded		 92×155×36 96×160×60 92×155×36 96×160×60
Weight(Including dry batteries) approx.380g approx.480g approx.410g approx.540g
Reference junction
compensation accuracy		 ±0.3℃*3 ±0.5℃*3
Temperature coefficient ±(0.04×Δt℃)*4
Time interval less than 1s : 0.1s ～ 0.99s
Over 1s : 1s ～ 99m 59s		 less than 1s : 0.2s ～ 0.99s
Over 1s : 1s ～ 99m 59s		 less than 1s : 0.2s ～ 0.99s
Over 1s : 1s ～ 99m 59s
Signal source resistance 500Ω or less (measurement interval 1 second or more)/100Ω or less (measurement interval less than 1 second)
Safe excitation voltage Between input pins on same channels :±30VDC
Between input pins on adjacent channels : 150Vp-p
Linearlizer Digital Linealizer method (Compliant with JIS C1602-2015)
Display Graphic liquid crystal display, 128×64 dots
Environment operational Operation : 0〜40℃、15〜80%RH (Non condensing)
Environment storage Storage : -10〜50℃、10〜85%RH (Non condensing)
Power supply 4 AA Alkaline batteries(Supplied accessories) or AC-Adaptor(Optional accessories)
Supplied accessories Manual, Test report, Softcase, Communications cable, 4 AA Alkaline batteries
Optional accessories Special data analysis software, AC-Adaptor, Carrying case
Compatible standards CE Marking, RoHS2

The selected thermocouple type (E･K･J･T･R) is entered in ※ of the model name.
*1 Thermocouple type (E･K･J･T･R)
*2 Type J･T･R are optional
*3 At 25℃±10℃
*4 When the ambient temperature is other than from 15℃ to 35℃, "the excess temperature from the ambient temperature Δt℃" x 0.04 is added to the measurement accuracy.


TABLE Ⅰ : Measurement Range

Thermocouple type Measurement range
E-200 to 800°C
K-200 to 1370°C
J-200 to 1100°C
T-200 to 400°C
R0 to 1760°C

TABLE Ⅱ : Measurement accuracy

Thermocouple type Accuracy compensation range Measurement accuracy
AM-9000※/AM-9100※ AM-9200/AM-9300
E,K,J,T -200.0～-100.1℃ ±1.0℃ ±1.5℃
-100.0～-0.1℃ ±0.5℃ ±1.0℃
0.0～200.0℃ ±0.3℃ ±0.5℃
200.1～500.0℃ ±0.5℃ ±0.7℃
500.1℃以上 ±0.7℃ ±1.0℃
R 0.0℃～500.0℃ ±1.5℃ ±2.0℃
500.1℃以上 ±2.0℃ ±2.5℃

*If the measurement interval is less than 1 sec, add ± 0.5 ℃ at type E ･ K ･ J ･ T and add ± 1.0℃ at type R


TABLEⅢ　12ch model standard time for continuous use (at 25 ℃, using alkaline AA batteries)

Setting interval 0.2sec 1sec 10sec
AM-9000 Series approx. 50 hours approx. 55 hours approx. 140 hours

* If the number of used channels is less than 12, the usable time will be longer.
