For over 40 years from its foundation in 1975, Noise Laboratory has been focusing on immunity test equipment and related solutions.
Now their product lines include various types of immunity test equipment ranging from those conforming to IEC 61000-4 series standards, other international or national immunity standards and even to customer's in-house test standards.
Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.
- ESD simulators
- Fast Transient Burst Simulators
- Impulse Noise Simulator
- Lightning Surge Simulator
- Lightning Surge Simulator for EV fast charging
- High Voltage Noise
- Field Decay Load Dump
- TEM Horn Antenna
- Thin Plate Broadband Antenna
- Electromagnetic Field Visualization System
- Automotive Transient Surge ISO
ESD simulators
EMC test equipment to evaluate the resistibility of electronic devices and components when energy charged on a human body or object is discharged to the electronic devices and components. NoiseKen brand ESD simulator is used to evaluate possible malfunctions or decline in function of electronic equipment for appropriate evaluations compliant with IEC61000-4-2 Ed.2 Test Standard & ISO 10605 ed.2 standards. (click standards to see details)
Fast Transient Burst Simulators
Electrical fast transients (EFT), such as switching transients originating from inductive load interruption, relay contact bounce, etc., are one of the main causes of equipment malfunctions. Because they can occur anywhere interfering with circuits primarily via mains and interconnection cables.
Impulse Noise Simulator To solve real trouble in the market
Noiseken simulators to reproduce fast rise-up noises which are generated when switching ON / OFF electric current on the inductive load. Since the pulse includes broadband frequency and its rise-up time is fast at 3ns or less, it can make the noise coupling dense and effective to reproduce the malfunctions of electronics equipment under the test. It can realize performance evaluation of electronics equipments upon reproduction of line noises which are intruded to the power supply lines or induced noises onto the telecommunication lines.
Lightning Surge Simulator (IEC 61000-4-5 Ed.3, IEC 61000-4-12 Ed.3)
A simulator designed to produce “High energy induced lightning noise” which is induced to power lines and telephone lines as result of potential change on the ground or lightning current.
This immunity test is required by major standards including IEC61000-4-5 and JEC 210/212 widely implemented in many industries.
Lightning Surge Simulator for EV fast charging
(IEC 61000-4-5 Ed.2/Ed.3, ECE R10)
Lightning Surge Simulator for EV fast charging that is compliant with IEC 61000-4-5 Ed.3 standard.You can evaluate the lightning surge resistance when charging EV / PHV vehicles, which is required by ECE R10-04 / 05. (EV Fast Charging applicable)
New ISO 7637 Standard Automotive Transient Surge Simulator
The ISS-7810/7820/7821 are simulators that output transient surges required by the international standard ISO 7637 for verifying the noise immunity tolerance of automotive electronic devices.
High Voltage Noise Generator (Japanese Car Manufacturer's Standard)
This model is specifically designed to carry a high pressure noise test of individual automotive manufacturers' demands to simulate high voltage noise often seen in Hybrid and Electric Vehicles.
Field Decay & Load Dump Generator (Japanese Car Manufacturer's Standard)
Reproduces transient voltage surge phenomena generated in a vehicle and evaluates the immune resistibility of DUT against the surge.
The output waveforms are five as high-repeating pulse, giant pulse, field decay pulse, trapezoidal waveform + high-repeating pulse and high repeating pulse + giant pulse.
TEM Horn Antenna (IEC 61000-4-39 Ed.1)
The TEM horn antenna is used to perform a near electromagnetic field immunity evaluation test(Proximity immunity test) of electromagnetic waves radiated from wireless transmitters such as cell phones.
The near field immunity test using a TEM horn antenna is expected to be applied to various product standards such as medical equipment and multimedia
equipment. NoiseKen's TEM horn antenna features a wide band, low VSWR, and a wide electric field uniformity property, providing efficient proximity irradiation immunity tests.

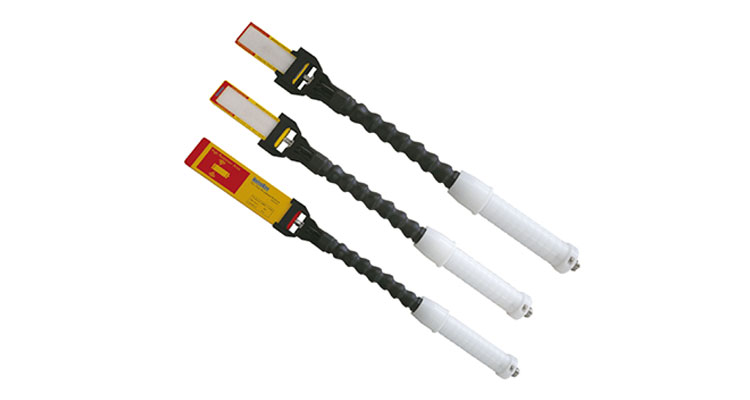

Thin Plate Broadband Antenna (ISO 11452-9 Ed.2)
Thin plate broadband antenna has been developed for efficient immunity testing against hand-held transmitters and cellular phones. Many pieces of spot frequency antennas had to be used in turn thus fur.
This new Thin-plate Broadband Antenna is a single antenna solution eliminating the need for antenna changes and dramatically reducing the test time. Furthermore, this antenna with its small-size and lightweight properties and a flexible handle is suitable for testing in narrow spaces.
Electromagnetic Field Visualization System Three-Dimensional Indication Simplifies EMC/EMI Debugging
The system detects position of the magnetic field sensor on the basis of the image on the camera first of all and then, recognizes strength of the signal that is measured by the sensor upon frequency analysis of the signal almost simultaneously.
Finally, visualization of the strength level in composition with the real image of the measured object can be realized on screen of PC in form of heat map in colors.
DC Power Supply Voltage Fluctuation Simulator
Simulator to reproduce power supply voltage fluctuation to electronics devices in a vehicle and evaluate the immune resistibility against the fluctuation.
Max. 4 channels, not only +B connection but also ACC, IG (and IG2), etc. can be synchronized for the reproduction.
Compliant to ISO 16750 and other private standards upon request.
Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.
