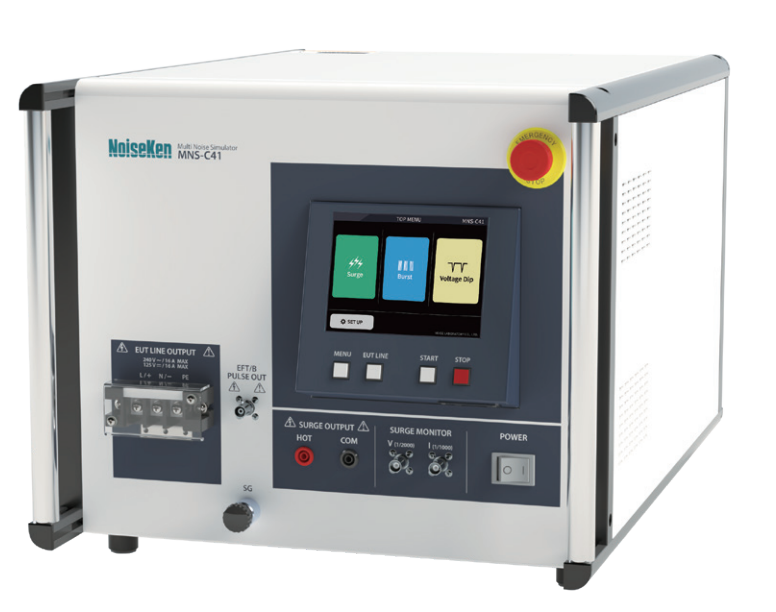

Multi Noise Simulator MNS-C41
EMC Compliance Testing,
With NoiseKen Quality
MNS-C41 combines the key EMC immunity tests, such as Electrical Fast Transient/Burst (IEC 61000-4-4), Lightning Surge (IEC 61000-4-5), and Voltage Short Interruptions (IEC 61000-4-11), into a single platform.
Purpose-built for EMC compliance testing, it streamlines the test process, enhances reliability, and provides a dependable testing environment that enables operators to work with confidence.
Features
- Supports EFT/Burst, Lightning Surge, and Voltage Short Interruptions Testing
- Compliant with IEC 61000-4-4, IEC 61000-4-5, and IEC 61000-4-11
- Voltage Dip Testing (16 A) is also available optionally. Voltage Variation Testing is not supported.
- Dedicated PC Control Software with Malfunction Judgement and Automated Report Generation functions
- Dedicated Pre-Check Software for Efficient Daily Inspection
- Durable, Maintenance-Friendly Design for Long-Term Reliability
- Color Touch Panel with Excellent Visibility and Operability
- English and Japanese User Interface
Electrical Fast Transient / Burst Test
Generator Specifications
| Parameter | Specification | |
|---|---|---|
| Applicable Standard | IEC 61000-4-4 Ed.3:2012 Compliant | |
| Output Voltage | 200 V to 4500 V, 10 V Step | |
| Polarity | Positive / Negative | |
| Pulse Repetition Frequency |
0.1 kHz to 1000 kHz 0.1 kHz to 1 kHz /0.01 kHz Step 1.0 kHz to 10 kHz / 0.1 kHz Step 10 kHz to100 kHz /1 kHz Step 100 kHz to 1000 kHz/10 kHz Step |
|
| Number of pulses | 1 to 1000, 1 Pulse Step | |
| Burst Duration |
Calculated as:(Number of Pulses) / (Pulse Repetition Frequency) Directly Adjustable Range:0.01ms to 999 ms |
|
| Burst Period | 10 ms to 1000 ms ±10%, 10 ms Step | |
| Polarity Alternation Function | Not Available | |
| Continuous Pulse Output | Not Available | |
|
Waveform Specification (50 Ω Load) Pulse Output |
Pulse Peak Voltage:(Output Voltage / 2) ±10% Rise Time : 5 ns ±30% Pulse Width : 50 ns ±30% |
Applicable Range Output Voltage: ±250 V to 4000 V Pulse Repetition Frequency: 5 kHz to 100 kHz |
|
Waveform Specification (1 kΩ Load) Pulse Output |
Pulse Peak Voltage:(Output Voltage x 0.95) ±20% Rise Time : 5 ns ±30% Pulse Width : 35 ns - 150 ns ±30% |
|
CDN Specifications
| Parameter | Specification |
|---|---|
| EUT Power capacity | Single-Phase AC 85 V - 240 V, 50/60 Hz, DC 125 V, 16 A |
| Application Phase |
L / N / PE Single Line, All Lines, or Individual Lines Selection |
| Coupling Mode | Common Mode |
| Output Type | Terminal Block |
| Coupling Capacitor | 33 nF |
|
Waveform Specification (50 Ω Load) |
Pulse Peak Voltage:(Voltage Setting / 2) ±10% Rise Time: 5.5 ns(-1.5/+1.5) ns Pulse Width: 45 ns(-15/+15) ns Specified at: Voltage Setting: ±4000 V Pulse Repetition Frequency: 5 kHz to 100 kHz |
|
Input residual voltage |
10% or less of the set pulse voltage Specified with EUT line inputs and outputs open-circuited |
|
AC Line Synchronization |
Mode: Synchronous / Asynchronous Phase Angle: 0° - 360° ±10°, 1° Step Min. Sync Voltage: AC 90 V or Higher Frequency: 50 Hz / 60 Hz ±10% |
Lightning Surge Test
Generator Specifications
| Parameter | Specification | ||
|---|---|---|---|
| Applicable Standard | IEC 61000-4-5 Ed.3:2014 Compliant | ||
| Output Voltage | 250 V ～ 4500 V 10 V step | ||
| Polarity | Positive / Negative | ||
|
1.2/50 μs - 8/20 μs Combination Wave |
Voltage |
Open-Circuit Voltage:250 V - 4500 V ±10% Front Time:1.2 μs ±30% Duration:50 μs ±20% Undershoot:≤ 30% of Peak Voltage |
|
| Current |
Short-Circuit Current : 125 A to 2250 A ±10% Front Time : 8 μs ±20% Duration : 20 μs ±20% Undershoot : ≤ 30% of Peak Current |
||
| Surge Generation Circuit Type | Floating | ||
| Repetition Period | 10 s to 999 s | ||
| Output Type | 4 mm Safety Plug | ||
| Pulse Voltage Monitor |
BNC Output, 2000 V/V (±10%) Output accuracy: ±10% of actual output. |
Open-Circuit Output (No Waveform Guarantee) |
|
| Pulse Current Monitor |
BNC Output, 1000 A/V (±10%) Output accuracy: ±10% of actual output. |
Short-Circuit Output (No Waveform Guarantee) |
|
CDN Specifications
| Parameter | Specification | ||
|---|---|---|---|
| EUT Power capacity |
Single-Phase AC 85 V - 240 V, 50/60 Hz DC 125 V, 16 A |
||
| Application Phase | L／N | ||
| Coupling Mode | Common Mode, Normal Mode | ||
| Output Type | Terminal Block | ||
| Coupling network |
Common Mode: 10 Ω + 9 μF Normal Mode: 18 μF |
||
|
Waveform Specification |
Common Mode |
Voltage |
Open-Circuit Voltage: 250 V - 4500 V ±10% Front Time: 1.2 μs ±30% Duration: 50 μs (+10 μs / -25 μs) |
| Current |
Short-Circuit Current: 20.8 A - 375 A ±10% Front Time: 2.5 μs ±30% Duration: 25 μs ±30% |
||
|
Normal Mode |
Voltage |
Open-Circuit Voltage: 250 V - 4500 V ±10% Front Time: 1.2 μs ±30% Duration: 50 μs (+10 μs / -25 μs) |
|
| Current |
Short-Circuit Current: 125 A - 2250 A ±10% Front Time: 8 μs ±20% Duration: 20μs ±20% |
||
| AC Line Synchronization |
Mode: Synchronous / Asynchronous Phase Angle: 0° - 360° ±10°, 1° Step Min. Sync Voltage: AC 90 V or Higher Frequency: 50 Hz / 60 Hz ±10% |
||
Voltage Short Interruptions Test
Test Specifications
| Parameter | Specification |
|---|---|
| Applicable Standard | IEC 61000-4-11 Ed.3:2020 Compliant (parameters listed below only) |
| Test Range | 0 V - 240 V |
| Frequency | DC, 50/60 Hz |
| Output Current | 16A |
| Inrush Current | 500 A Peak |
| Interruption Duration | 100 μs - 30 s |
| Fall Time / Rise Time | 1μs - 5 μs |
| AC Line Sync Output | 0° - 360°, 1° Step |
| Repetition Period | 10 ms - 999 s |
General & Other Specifications
General Specifications
| Parameter | Specification |
|---|---|
| Power Requirements | AC 100 V - 240 V ±10%, 50/60 Hz |
| Power Consumption | 130 VA |
| Operating Environment |
Temperature: 15°C - 35°C
Relative Humidity: 25% - 75% |
| Dimensions | W 430 × H 349 × D 540 mm(Excluding Protrusions) |
| Weight | Approx. 50 kg |
Other Specifications
| Parameter | Specification |
|---|---|
| Emergency Stop Button | Push-Lock Pushbutton Switch |
| Interlock Terminal | Testing Stops When Open-Circuited |
| Pre-Check Function | PC Software-Based(Basic Waveform Verification) |
| EUT Line Input/Output Terminal | Terminal Block |
| LCD | Color Touchscreen |
| Language | Selectable: English / Japanese |
Optional Accessories
Accessories and Software
| Product Name | Model No. | Description |
|---|---|---|
| CDN Waveform Verification Connector | 02-00169A | Dedicated connector for verifying CDN output waveform. |
| SG Terminal Connection Plate for MNS-C41 | 03-00145A | Metal plate for connecting the SG terminal of the tester to the ground plane. |
| Single-Phase Tap Transformer | 17-00008A | Transformer for voltage dips and short interruptions testing in accordance with IEC 61000-4-11. *not an Isolation Transformer! |
| Outlet Box for MNS(125 V, 15 A, 2P+PE) | 18-00089A | Outlet box for connecting EUTs, rated for 125 V, 15 A. JP/USA (Type A) |
| Outlet Box for MNS(Multi-Type) | 18-00090A | Outlet box for EUT connection compatible with multiple outlet standards. |
| Coupling Clamp | 15-00018A | Coupling clamp for communication line testing in accordance with IEC 61000-4-4. |
| Clamp Calibration Fixture | 15-00010A | Fixture for verifying and calibrating the coupling characteristics of the coupling clamp. |
| OPTICAL INTERFACE BOX | 07-00022A | Interface unit for optically isolated connection between the tester and a PC. |
| MNS-C41 RemoteW | 14-00078A | Dedicated software for remote control of the MNS-C41 from a PC. |
| MNS-C41 Pre-Check Kit | 14-00079A |
Pre-check software for verification of MNS-C41 output waveform.
* Oscilloscope required separately. |
An isolation transformer is required for Lightning Surge testing. Test options for communication and signal lines are currently under development.
Additional accessories, including waveform verification fixtures for inspection and calibration, as well as safety-related options, are also available. Please contact our sales representatives for details.
