This tester simulates the electrostatic discharge phenomenon from a charged human body and evaluates the resistance of electronic devices to electrostatic discharge.
Electrostatic discharge occurs when a charged human body approaches an operation panel, button switches, or housing of electronic devices. It generates a high-voltage, highfrequency noise which can cause malfunctions in the electronic devices. Electrostatic testing reproducing noise caused by electrostatic discharge is one of the essential immunity tests to prevent troubles caused by noise in the market.
IEC 61000-4-2 Ed.2.0/Ed.3.0 and ISO 10605 Ed.2/Ed.3 Standards compliance

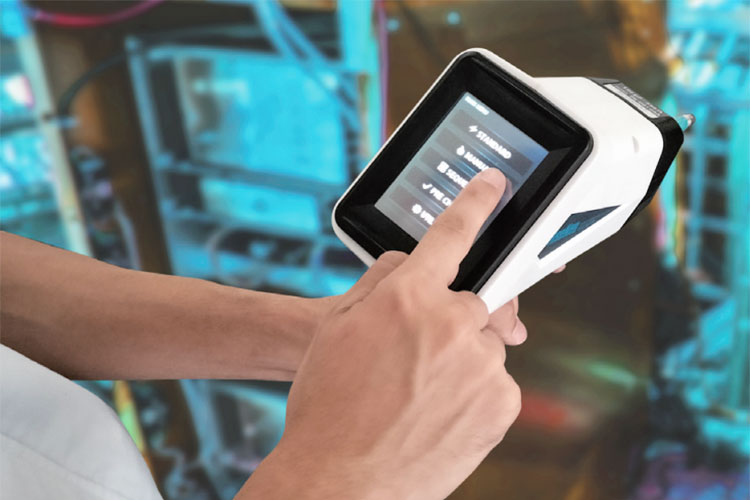

Greater freedom in testing! Touch panel and portable battery for easier testing
The discharge gun is equipped with a touch panel and is battery-powered for improved portability. This is effective when testing mobility devices, large medical devices, office equipment, etc.
Product image is for illustration purpose only.

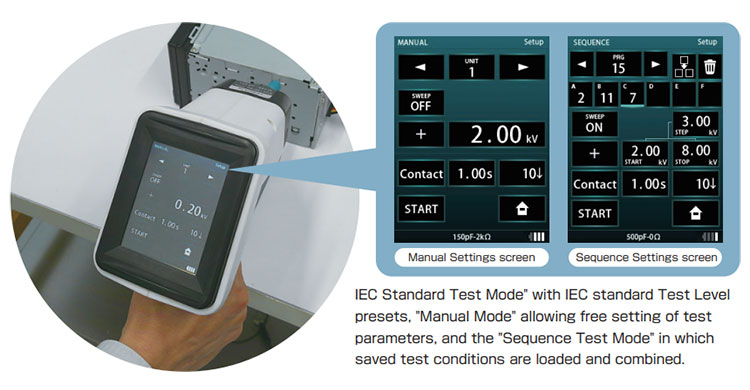

Easy setting of test conditions Intuitive Operation Screen
Easy setting of test conditions using the touch panel on the discharge gun. User-friendly intuitive design with English/Japanese multilanguage support.

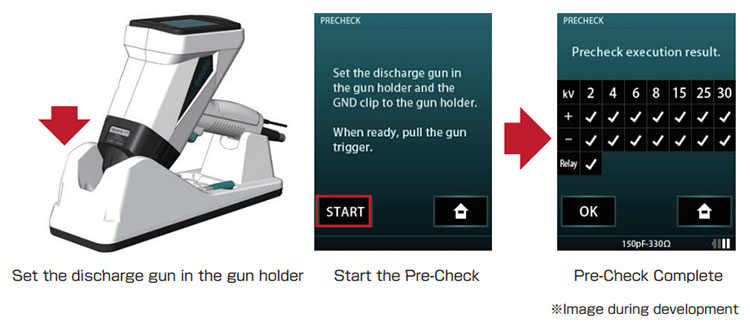

More reliable testing Pre-check Function
Three pre-check functions to ensure more reliable testing: "High voltage power supply output check," "Insulation failure check," and "Discharge relay operation check." Three pre-check functions allow early detection of abnormalities in the testing equipment. Does not require a dedicated measuring device, anyone can easily operate this function.
Specification
Parameter
Features / Specifications
Output voltage
0.2kV ～ 30.0kV
Polarity
Positive / negative
Repetition cycle
0.05s ～ 600s
Discharge number of times
1 - 60,000 times, continuous
Discharge mode
Contact discharge / Air discharge
Test mode
IEC standard test mode
Manual test mode
Sequence test mode
Trigger mode
Gun trigger / External trigger
Discharge detection
present
Pre-check function
present
CR-cup check
IEC & ISO detection
Operation panel
Color LCD touch panel (resistive film type)
Language
English / Japanese
External Control
Optical connector connection for PC communication
Power Supply
AC100V ～ 240V / battery
Dimensions
Power Supply Unit: (W)180×(H)124×(D)292mm
Gun: (W)90×(H)236.2×(D)285.4mm * protrusions excluded
Weight
Power Supply Unit: 3kg (excluding AC adapter) Gun: 1.2kg (cables included/connector excluded)
Gun Holder
Included in the package
Options & Accessories
Discharge modules, test accessories, waveform verification equipment, and test environment components for the ESS-PS1 and GT-31S.

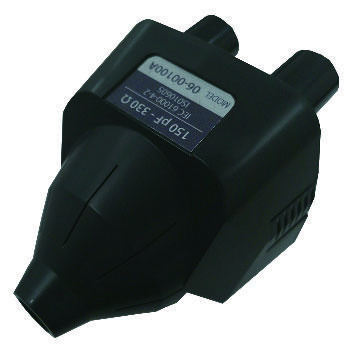

Discharge modules (CR for GT-31S)
Conventional discharge guns have a separate CR unit and discharge cup. In the GT-31S, these are integrated into one discharge module. Replacing the module enables testing to IEC 61000-4-2 and ISO 10605 standards.
Discharge module lineup
Model
Capacitance / resistance
Remarks
06-00100A
150 pF / 330 Ω
IEC 61000-4-2 Ed.2 & Ed.3; ISO 10605 Ed.2 & Ed.3
06-00101A
150 pF / 2 kΩ
ISO 10605 Ed.1/2/3
06-00102A
330 pF / 330 Ω
ISO 10605 Ed.2 & Ed.3
06-00103A
330 pF / 2 kΩ
ISO 10605 Ed.1/2/3
06-00104A
150 pF / 330 Ω
CR for Micro-gap Discharge Tip 12-00010A
06-00105A
500 pF / 0 Ω
—
06-00106A
150 pF / 500 Ω
—
06-00107A
100 pF / 1.5 kΩ
—
06-00108A
200 pF / 0 Ω
—
06-00109A
150 pF / 150 Ω
—
06-00115A
150 pF / 330 Ω
Fast Rise Time CR for GT-31S
06-G1262
200 pF / 50 Ω
Discharge module for wearable devices
06-00100A is included in the GT-31S discharge gun package. Please inquire separately for discharge modules with constants other than those listed.

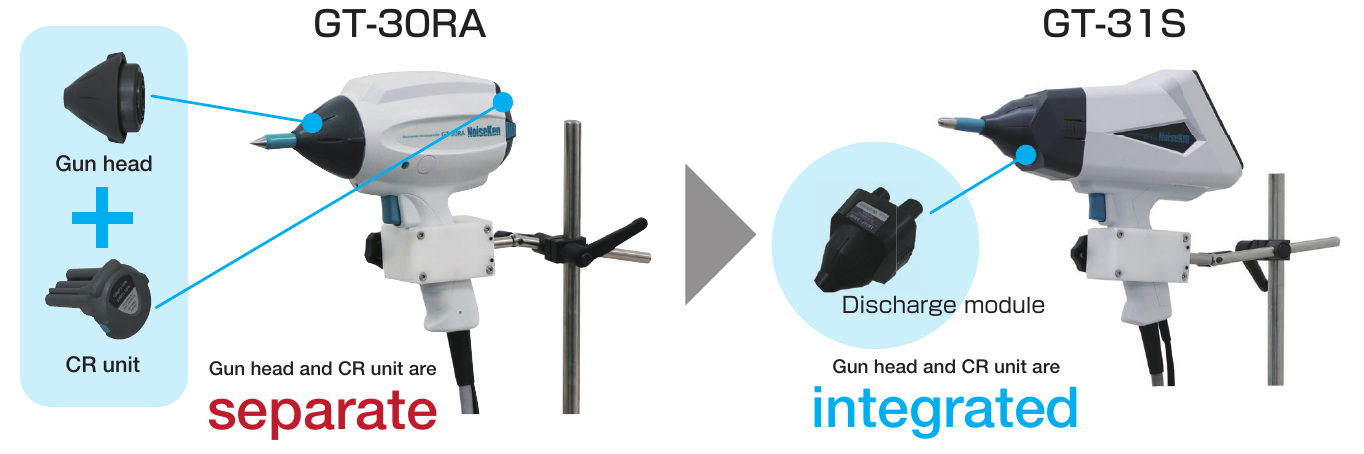

GT-30RA: separate gun head and CR unit. GT-31S: integrated discharge module.
For ISO 10605 testing
The GT-ISOSET-A accessory set enables ISO 10605 testing with the GT-31S.
Model
Product
Set contents
GT-ISOSET-A
Accessory set for GT-31S
06-00101A, 06-00102A, 06-00103A and 12-00009A; quantity: 1 each. 12-00009A is a sphere-type discharge tip.

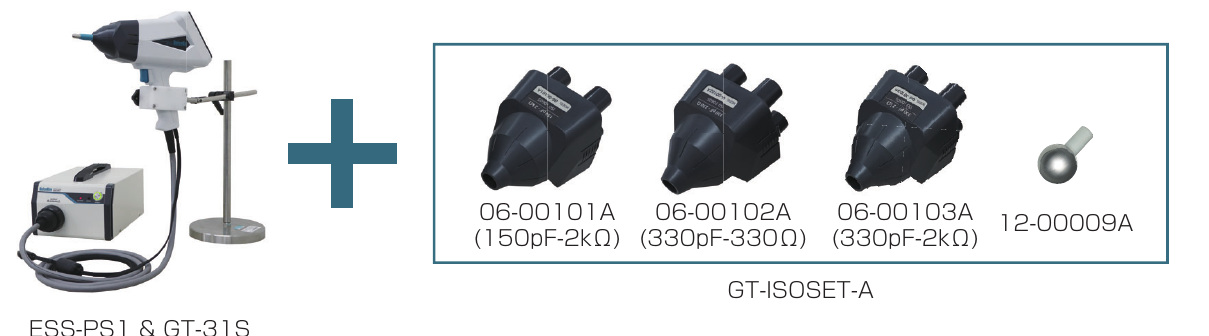

ESS-PS1 and GT-31S with the GT-ISOSET-A accessory set.

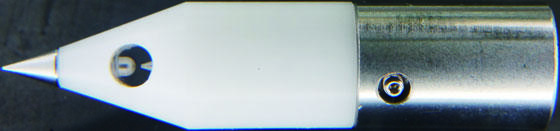

Micro-gap discharge tip
Micro-gap discharge tip
12-00010A

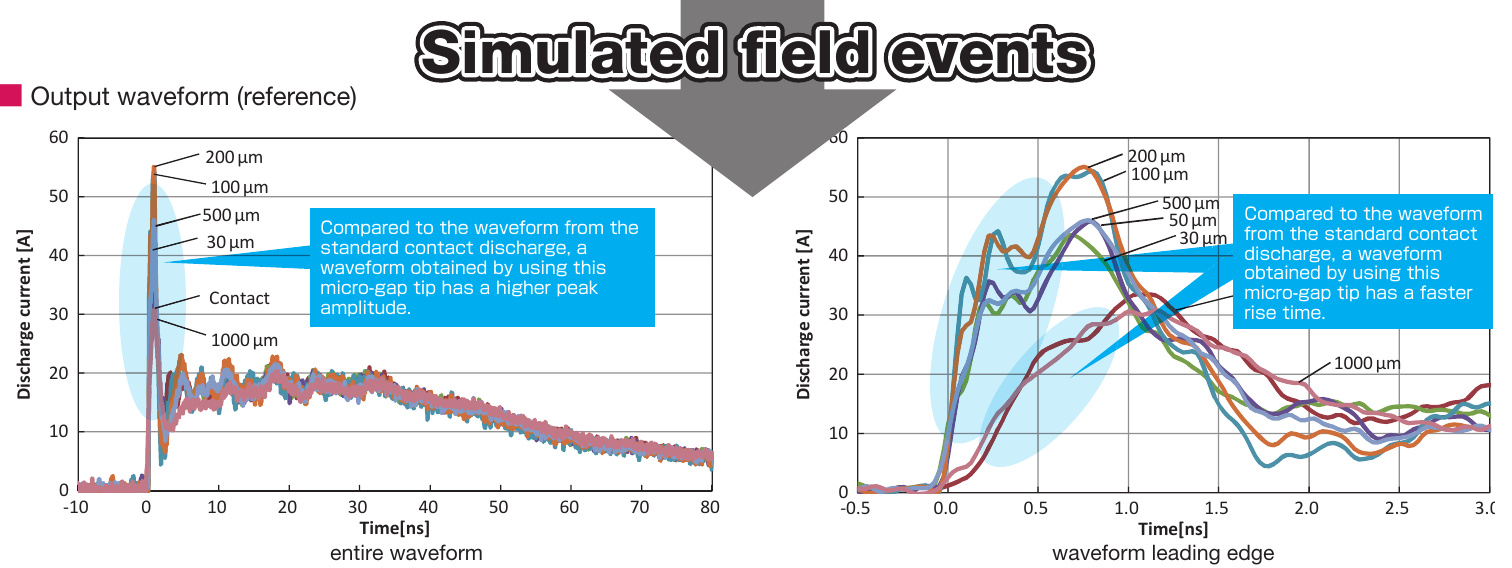

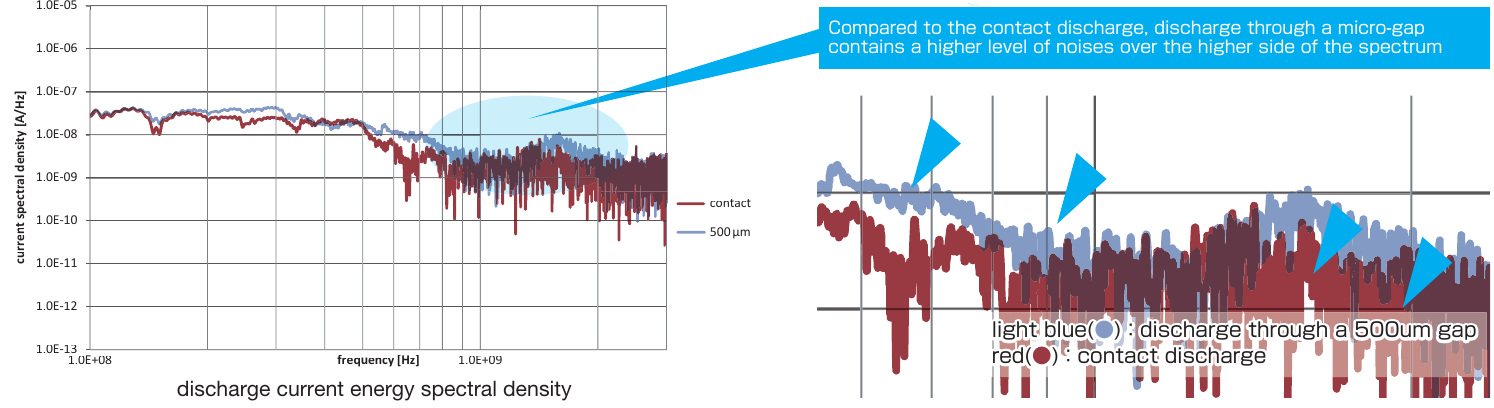

Connected to a NoiseKen ESD gun, this tip produces a waveform with a higher peak amplitude and faster rise time. It supports more stringent evaluation of real-world ESD immunity and more extensive testing against non-standardized field events. Passing a standard test does not always assure real-world immunity.
Simulated events: loose screws, poor insulation coating, poor electrical connections between components, and other conditions that cause secondary discharges over very short distances.
Other compatible discharge guns: TC-815S, 815R, 815ISO, 815-330, 815-2K, 815S-330, and GT-30R series (Gun Head 03-00103A required).
This product cannot be used for air discharge testing.

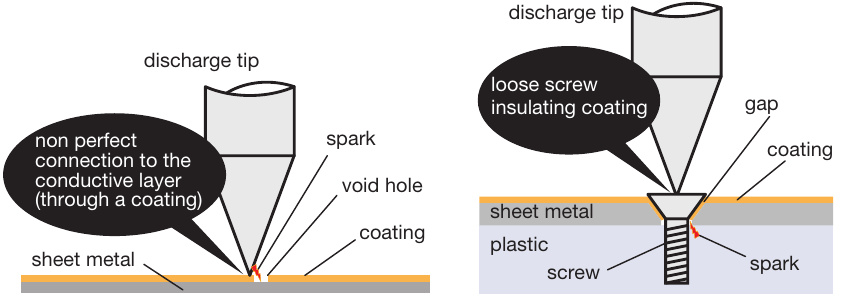

Examples of secondary discharge through imperfect conductive connections and loose screws.Reference output waveforms: entire waveform and leading edge. The micro-gap tip produces higher peak amplitude and faster rise time than standard contact discharge.Discharge current energy spectral density. A 500 μm micro-gap (light blue) produces more high-frequency noise than contact discharge (red), supporting testing with energy-rich pulses in the GHz band.
Gun accessories & control
Discharge tips
12-00007A / 12-00008A / 12-00009A
Replacement tips for the discharge gun.
12-00007A
Conical
12-00008A
Round
12-00009A
Sphere type, 30 mm
Discharge gun stand
03-00127A
Fixes the discharge gun during testing and during the pre-check (pre-start inspection).
Included in the ESS-PS1 main unit package.
ESD elimination brush
05-00125A
Removes electrical charges accumulated on equipment during ESD testing.
Dimensions
W250 × D15 × H60 mm
Weight
Approx. 160 g, excluding cable
Automatic ESD eliminator
01-00013B
Connects to the ESS-PS1 to automatically remove charges accumulated on equipment by the application of static electricity.
Dimensions
W85 × D150 × H60 mm
Mass
1.1 kg

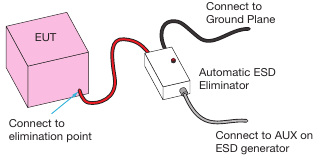

Automatic ESD eliminator connections to the EUT, elimination point, ground plane and ESD generator AUX port.
Free arm probe stand
03-00022B
Moves and fixes the discharge gun at the desired position, up or down, left or right.
Dimensions (stored)
W200 × D68 × H750 mm
Mass
5 kg
Not standardized in the Standard. GT-31S use requires the separately supplied stand conversion adapter 03-00131A.

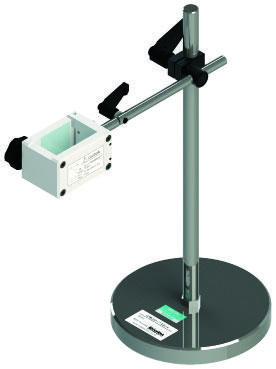

Probe stand for GT guns
03-00130A
Articulated probe stand exclusively for the GT-31S. Allows the discharge gun to be oriented and fixed in a desired direction.
Height / base diameter
380 mm / 160 mm
Mass
4.1 kg
Motion range
Vertical: 150 mm; pivot angle: 130°
Not standardized in the Standard.
Stand conversion adapter
03-00131A
Adapter for mounting the GT-31S discharge gun on a free arm probe stand.
Optical interface box
07-00022A
Used to operate the ESD simulator remotely from a PC. Includes a 5 m USB-to-optical conversion fiber-optic cable.
AUX connector junction box
05-00052A
Connects multiple auxiliary accessories, such as a warning light, automatic ESD eliminator and external triggers.
Warning light
11-00014B
Used with the ESS-PS1. Flashes during testing to alert surrounding people.
AC adapter
17-00007A
AC adapter for the ESS-PS1 ESD simulator.
Included in the ESS-PS1 package.
Waveform verification equipment

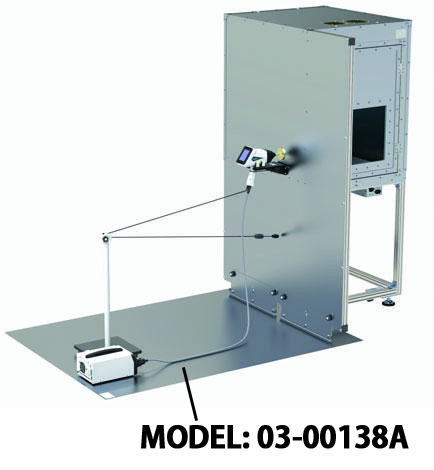

Faraday cage
FC-300
For checking current waveforms defined in IEC 61000-4-2 and ISO 10605. Equipped with casters for easy movement.
Dimensions
W848 × D765 × H1757 mm
Mass
Approx. 75 kg
Power supply
AC 100 V, 50/60 Hz ±10%
Compliant with IEC 61000-4-2 Ed.3. RGP 03-00138A, GND cable positioner 03-00129A and discharge gun mount 03-00128A are not included. Other supply voltages (220 V, etc.) are available on request.
RGP for FC-300
03-00138A
Ground plane for the FC-300 Faraday cage.
Dimensions
W1225 × D1680 × T1.5 mm

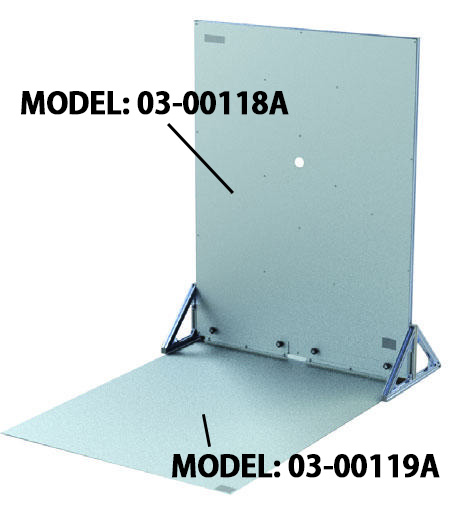

ESD current target mounting plate
03-00118A
Board for mounting the current target in a discharge current waveform measurement environment. A dedicated ground plane is available as 03-00119A.
Mounting board
W1275 × D560 × H1636 mm
RGP for 03-00118A
03-00119A
Dedicated ground plane for the ESD current target mounting board.
Dimensions
W1210 × D1660 × T1.5 mm, excluding positioning block

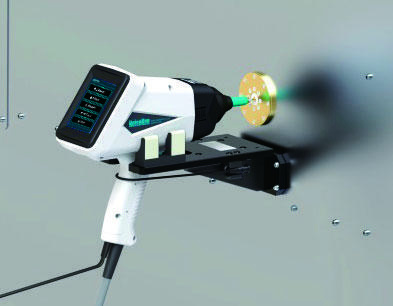

Discharge gun mount
03-00128A
Fixes the discharge gun during waveform verification using a Faraday cage or target mounting board 03-00052B / 03-00118A.
Compatible guns
GT-31S, GT-30R(A), TC-815R, TC-815S

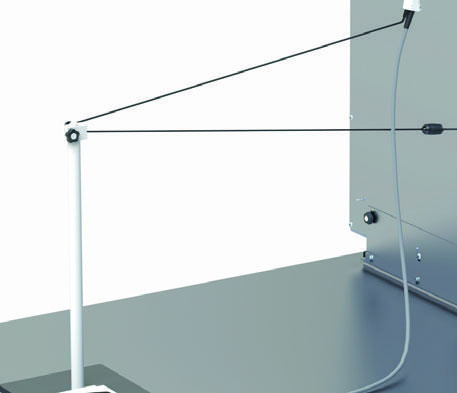

GND cable positioner
03-00129A
Pulls and positions the discharge gun ground cable when observing the ESD discharge current waveform.
Height
700 mm
ESD current target
06-00094A
Load resistor required by IEC 61000-4-2 for measuring the electrostatic discharge current waveform.
Max. applied pulse voltage
30 kV MAX
Input resistance
2.04 Ω
Output impedance
2.04 Ω
Insertion loss (S21)
300 kHz–1 GHz: within ±0.5 dB; 1–4 GHz: within ±1.2 dB
Output connector
SMA
Dimensions
Ø70 × 35 mm
Mass
480 g
Includes two 00-00022A attenuators and one 02-00157A coaxial cable. Conversion connector 02-00133A is not included.

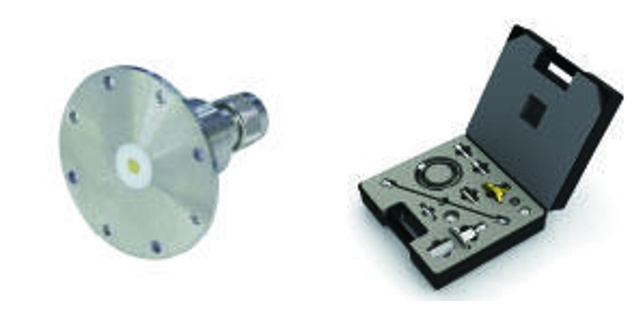

ESD current target calibration set
06-00068B
Adapter for calibrating ESD current targets 06-00094A and 06-00067A.

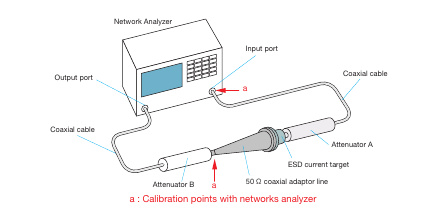

Calibration setup with network analyzer, attenuators, coaxial cables, ESD current target and 50 Ω coaxial adaptor line.
Not compatible with 06-00001A. Current target 06-00094A is not included.
Target mounting board (1.2 m × 1.2 m)
03-00052B
Mounting board for fixing ESD current target 06-00094A to measure the discharge current waveform.
Dimensions
1200 × 1200 mm
Load resistor mounting board
03-00027A
Compact mounting board for fixing ESD current target 06-00094A to measure the discharge current waveform.
Dimensions
600 × 600 mm
Attenuator
00-00022A
20 dB SMA-type attenuator for protecting measurement equipment.
Included in the 06-00094A package.
Coaxial cable
02-000157A
High-frequency coaxial cable connecting the ESD current target to an oscilloscope.
Length
1 m
Included in the 06-00094A package. The catalog lists this cable as 02-000157A in its heading and 02-00157A in the package contents; please confirm the model when ordering.
Conversion connector
02-00133A
SMA-to-BNC conversion connector.
Test environment components

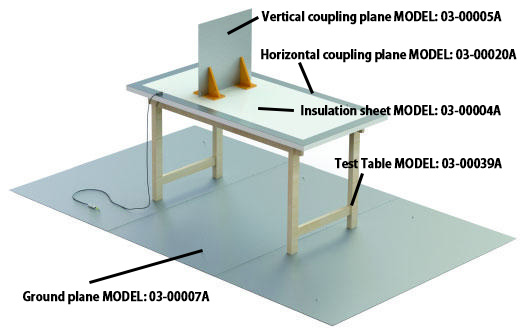

Example of a table-top ESD test environment with coupling planes, insulation sheet, test table and ground plane.
Complete test environment sets are also available: ESS-801 / ESS-801GL (table-top and floor-standing types). Please contact us for details of these sets.
Vertical coupling plane
03-00005A
For table-top test environments.
Dimensions
W500 × D500 × T1.5 mm
Material
Aluminium
Support base and center adapter included.
Horizontal coupling plane
03-00020A
Metal plate placed on a test table in a table-top test environment.
Dimensions
W1600 × D800 × T1.5 mm
Mass
5.2 kg
Material
Aluminium
ISO 10605 Ed.3 defines the horizontal coupling plane as the ground plane.
Insulation sheet
03-00004A
Insulation sheet for table-top test environments.
Dimensions
W1450 × D650 × T0.5 mm
Material
Vinyl chloride
Test table
03-00039A
Test table for a table-top ESD test environment.
Dimensions
W1600 × D800 × H800 mm
Mass
22 kg
Load capacity
100 kg
Ground plane
03-00007A
Metal plates placed under the wooden test table.
Dimensions per sheet
W1800 × D1000 × T1.5 mm
Mass per sheet
7.2 kg
Quantity
3 sheets / set
Material
Aluminium
Not required in ISO 10605 Ed.3, which uses the horizontal coupling plane as the ground plane.

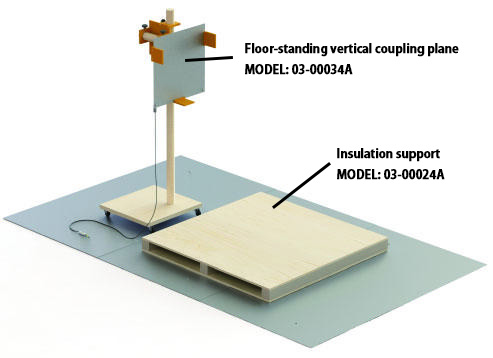

Floor-standing vertical coupling plane
03-00034A
Vertical coupling plane for floor-standing test environments.
Dimensions
W540 × D500 × H1538 mm
Material
Aluminium
Support base and center adapter included.
Insulation support
03-00024A
Insulating support for floor-standing ESD testing.
Dimensions as printed
W1200 × D1200 × H10 mm
Mass
22 kg
Load capacity
500 kg
The catalog describes raising equipment by 10 cm but lists H10 mm in the dimensions. Please confirm the support height before specifying this item.
Cubic insulating block 100
03-00029A
Raises equipment by 10 cm in a floor-standing test environment.
Dimensions
W100 × D100 × H100 mm
Quantity
4 pieces / set
Discharge resistance cable (1.5 m)
05-00182A
Connects the horizontal coupling plane to the ground plane.
Length
1.5 m
Resistors
Two 470 kΩ resistors
IEC 61000-4-2 Ed.2/Ed.3 and ISO 10605 Ed.2/Ed.3 compliant. Photo is for illustration only.
Discharge resistance cable (3 m)
05-00183A
Connects the vertical coupling plane to the ground plane.
Length
3 m
Resistors
Two 470 kΩ resistors
IEC 61000-4-2 Ed.2/Ed.3 and ISO 10605 Ed.2/Ed.3 compliant. Photo is for illustration only.
Insulation block
03-00054A
Raises and insulates wiring from equipment above the ground plane.
Dimensions
W300 × D300 × H50 mm
Quantity
5 sheets / set
ISO 10605 Ed.3 compliant.
Insulation support
03-00066A
Sheet placed between equipment and the ground plane during electrostatic testing of in-vehicle electronic equipment.
Dimensions
W1450 × D650 × T2 mm
Material
Transparent PVC (polyvinyl chloride)
ISO 10605 Ed.2 compliant.
Special adaptors & storage cases
Static dissipative mat for ISO 10605
03-00055A
Placed between equipment and the ground plane during packaging and handling ESD susceptibility testing.
Dimensions
W1000 × D1000 × T2 mm
Aluminium plate for testing
03-00053A
Metal plate placed under a tire when performing ESD testing on an actual vehicle.
Dimensions
W500 × D500 × T1.5 mm

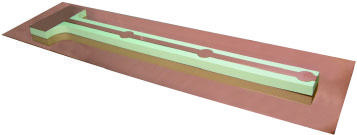

Field coupling plane
03-00065A
Set of a copper coupling part and insulating block specified in ISO 10605. The dimensions of the electric field coupling surface depend on the size of the EUT.
Customization is available; please consult our sales representative. Ground plane not included.
Impulsive electric field adaptor for GT-31S
03-00135A
Simulates electrostatic induction, an inductive mode of noise. Used with an ESD simulator and discharge gun.
Impulsive magnetic field adaptor for GT-31S
03-00136A
Simulates magnetic field induction, an inductive mode of noise. Used with an electrostatic tester and discharge gun.
Magnetic field loop adaptor for GT-31S
03-00137A
Magnetic field loop adaptor in accordance with the U.S. Ford standard. Used with an electrostatic tester and discharge gun.

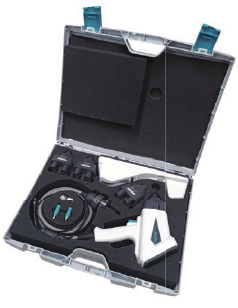

Storage case for GT-31S
09-00011A
Stores the GT-31S discharge gun and the GT-ISOSET-A accessory set for ISO-standard testing.

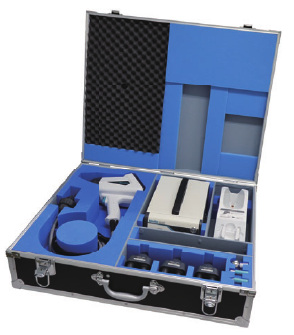

ESS-PS1 / GT-31S storage case
CASE-ESSPS1
Stores the ESS-PS1 tester, GT-31S discharge gun, and GT-ISOSET-A accessory set for ISO-standard testing.
