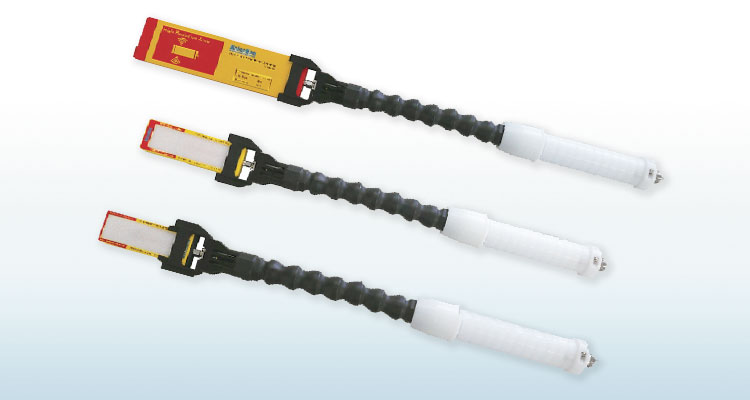

Broadband Sleeve Antenna MODEL : NKU07M32G/NKU2460G/NKU5080G
- Compliant with ISO 11452-9:2021 and ISO 11451-3:2024.
- Supports testing up to 7.125 GHz, including Wi-Fi 6E and Wi-Fi 7 bands.
- Wide frequency coverage eliminates antenna changes.
- Handles up to 20 W input power (10 W for NKU2460G/NKU5080G) for high-field testing.
- Low VSWR and high gain for efficient performance.
- Excellent VSWR flatness supports broadband digital modulation.
- Compact, lightweight, and flat design for use in tight spaces.
- Flexible handle enables easy positioning and operation.
- Stable near-field distribution minimizes antenna repositioning during EUT testing.
SPECIFICATIONS
| Model | NKU07M32G | NKU2460G | NKU5080G |
| Frequency Range | (660) 700 MHz 〜 3.2 GHz | 2.4 GHz 〜 6 GHz | 5 GHz 〜 8 GHz |
| VSWR | ≦ 2 | ～ 7.5GHz：≦ 2.0 7.5GHz ～：≦ 2.5 | |
| Maximum Power Input | 20 W (continuous) | 10 W (continuous) | |
| Input Impedance | 50 Ω | ||
| Connector | SMA (J) *antenna part only | ||
| Dimensions | W50 x D8 x H186 mm (protrusions excluded) | W35 x D10 x H108 mm (protrusions excluded) | W33 x D90 x H9.5 mm (protrusions excluded) |
| Weight | 73.5g | 20 g | 14g |

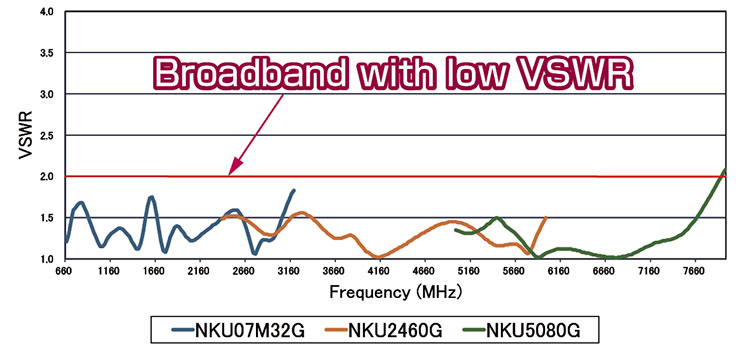

VSWR

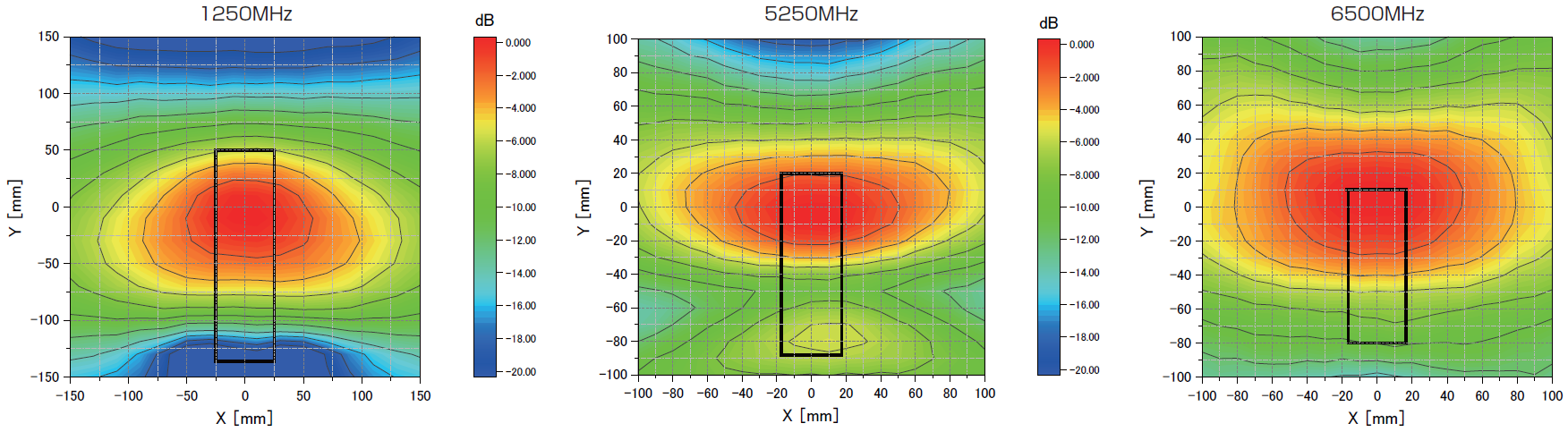

Image of Electric Field Distribution Characteristics
Distribution map conditions:
1-axis electric field | Measurement distance: 50 mm from the antenna | Contour line interval : 2dB / Line

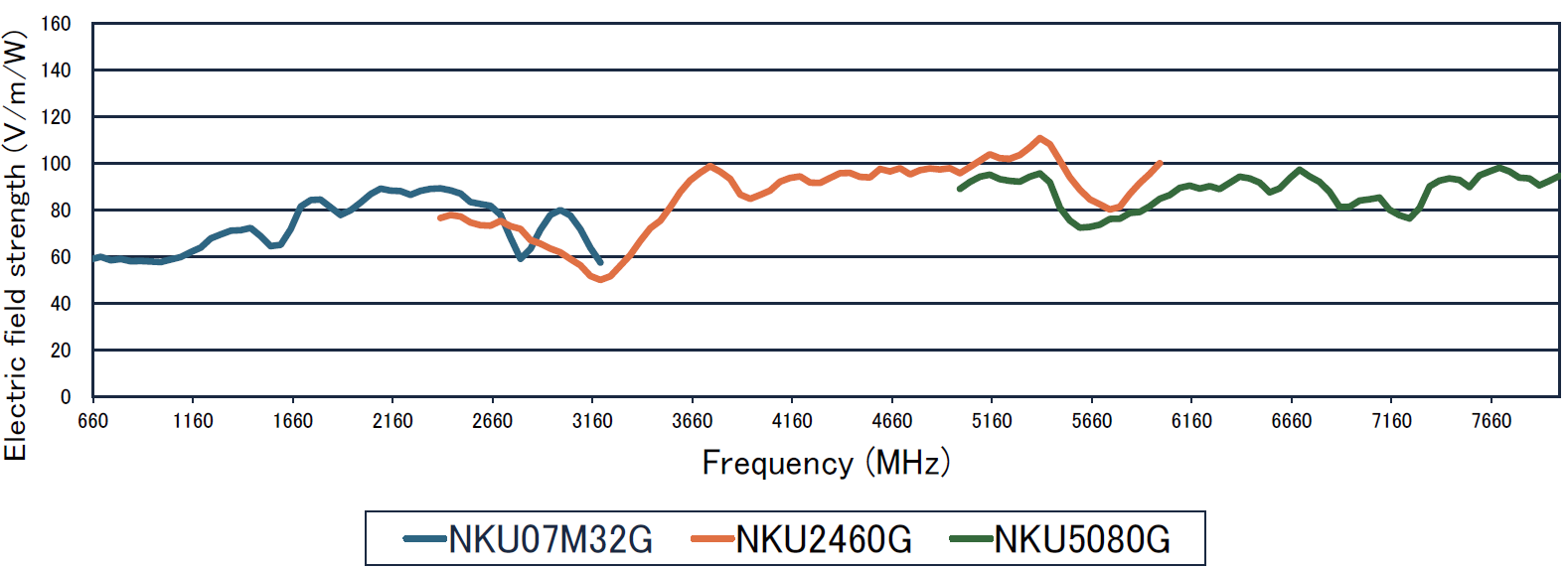

Image of Electric Field Strength Characteristics
Conditions for Acquiring Electric Field Strength:
1-axis electric field | Measurement distance: 50 mm from the antenna | Antenna input: 1W
Measurement position coordinates (X : Y): NKU07M32G (0 : 10), NKU2460G (0 : 0),NKU5080G (0 : 0)

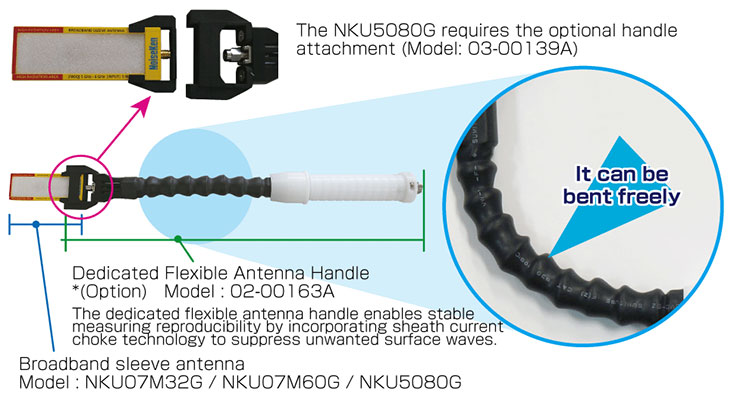

Antenna Configuration
NKU-5080G Mounting Adapter MODEL：03-00139A
Required for the NKU5080G.

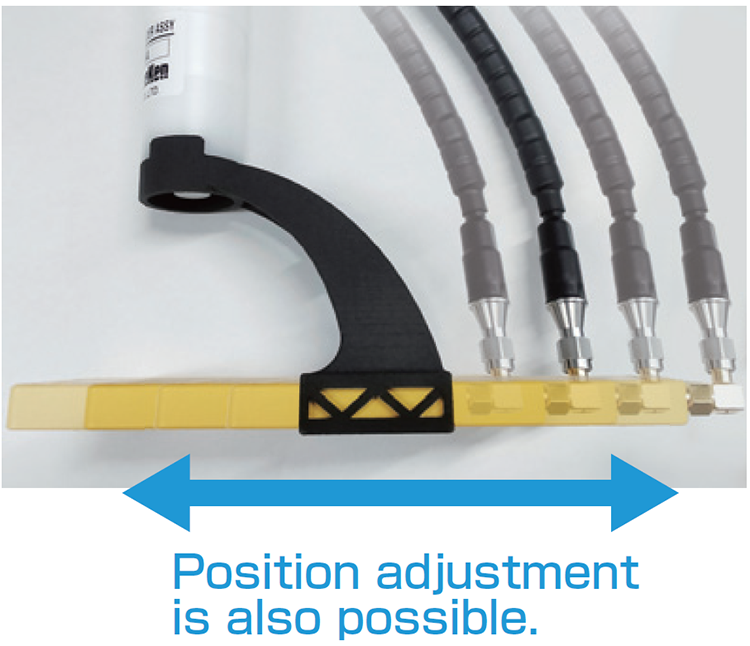

Flexible Antenna Handle MODEL: 02-00163A
The dedicated flexible antenna handle enables stable measuring reproducibility by incorporating sheath current choke technology to suppress unwanted surface waves.
Testing Images

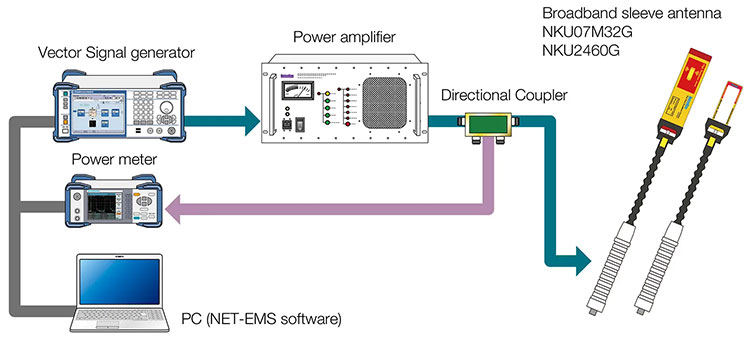

System Configuration Example

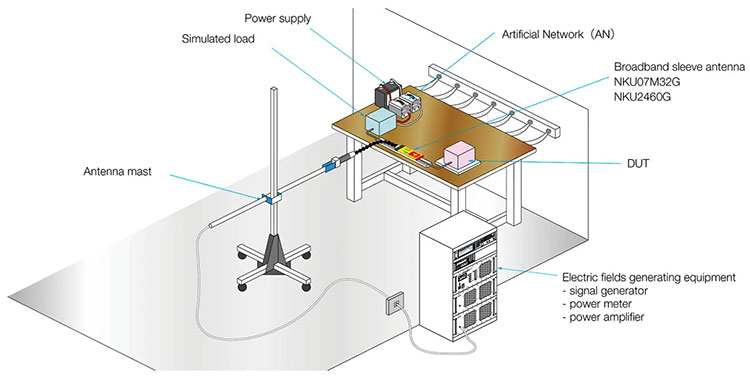

Testing For Automotive Electronics

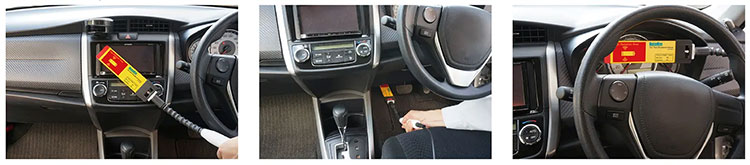

In-Vehicle Testing
Options

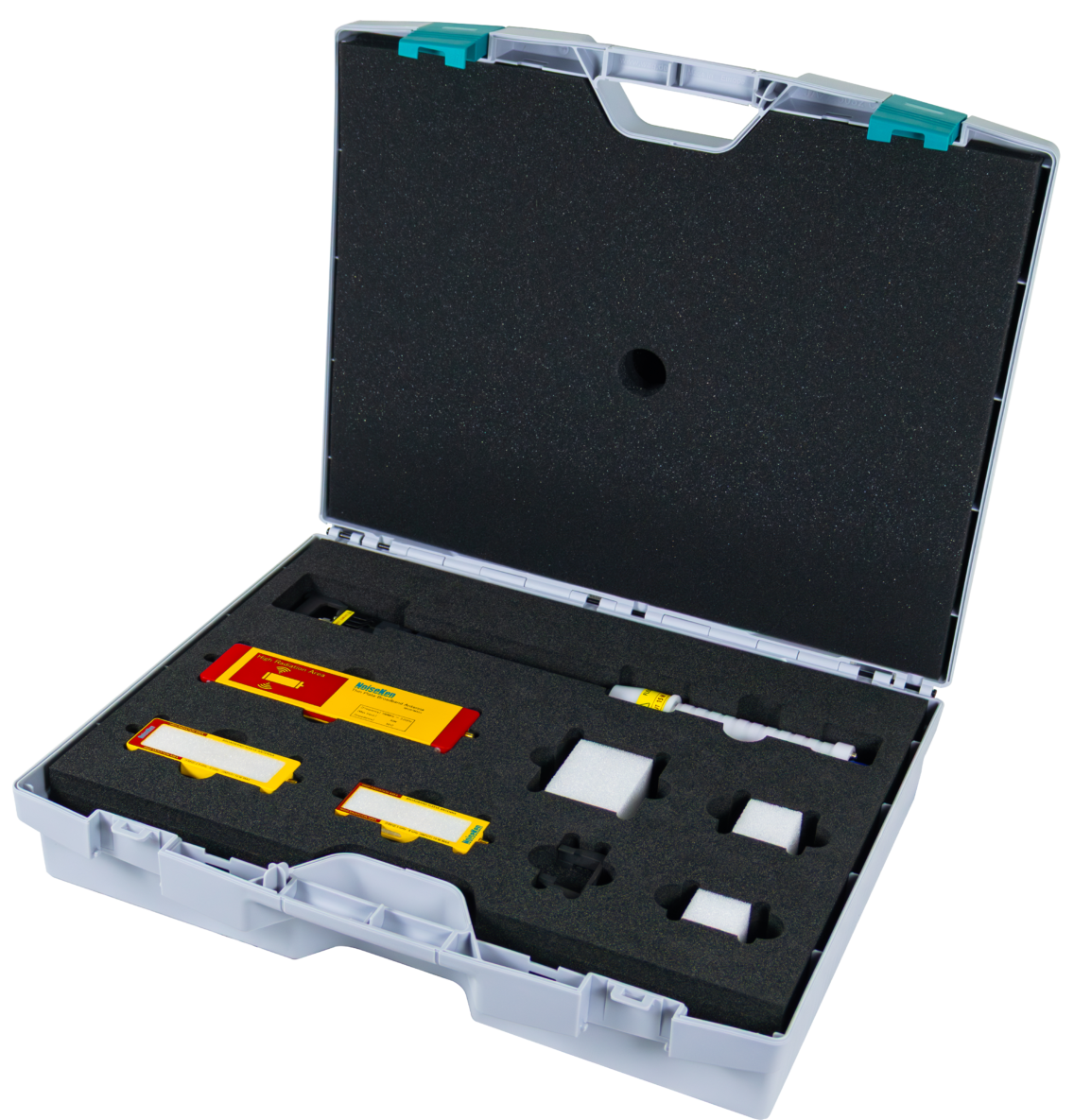

Carrying Case For Antenna MODEL: 09-00012A
A dedicated storage case designed for broadband sleeve antennas.
*The image is shown for reference only to illustrate a possible storage configuration. The package includes the storage case only; antennas and other items shown are sold separately and are not included.
Dimensions: W497 x D 497 x H140 mm, Weight 2.3 kg (W19.6 × D19.6 × H5.5 in, Weight 5.1 lb.)
【Compatible Products】- Broadband Sleeve Antenna MODEL:NKU07M32G / NKU2460G / NKU5080G
- Flexible Antenna Handle MODEL：02-00163A
- NKU-5080G Mounting Adapter MODEL：03-00139A
- Antenna Spacer For NKU07M32G MODEL：03-00114A
- Antenna Spacer For NKU2460G MODEL：03-00113A
- Antenna Spacer For NKU5080G MODEL：03-00140A

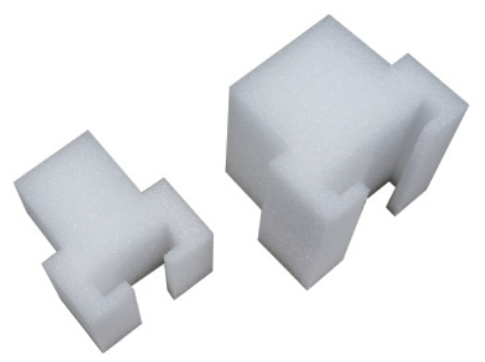

Antenna Spacer MODEL: 03-00113A / 03-00114A / 03-00140A
Antenna Spacer for the Broadband Sleeve Antenna.
Equipping it allows the irradiation distance from the EUT to be kept at 50 mm.
- Antenna Spacer For NKU07M32G MODEL：03-00114A
- Antenna Spacer For NKU2460G MODEL：03-00113A
- Antenna Spacer For NKU5080G MODEL：03-00140A

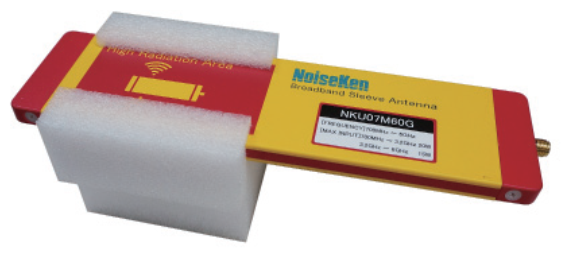

Image of the equipped Antenna Spacer

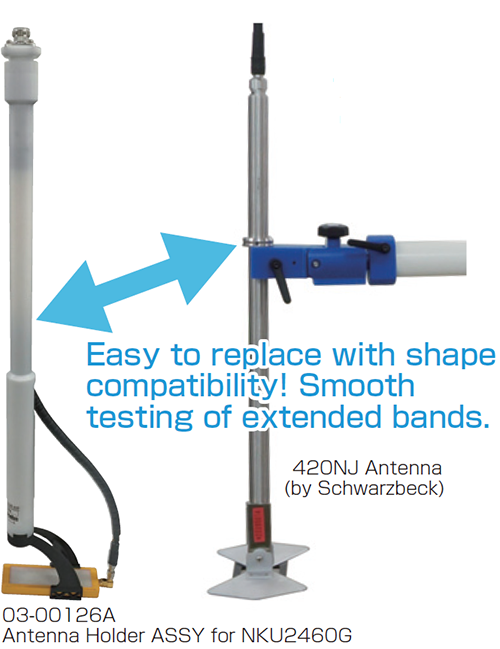

Dedicated Antenna Adapter for NKU2460G MODEL: 03-00126A
A dedicated antenna adapter for broadband sleeve antennas. By using this adapter, antennas can be attached using Φ22 antenna holders and similar equipment. It is shape-compatible with the Schwarzbeck 420NJ antenna, making antenna changing easy.
