Olsen Type Stiffness Tester made in Japan is now available
Olsen Type Stiffness Tester is used to evaluate bending reaction strength of various materials.

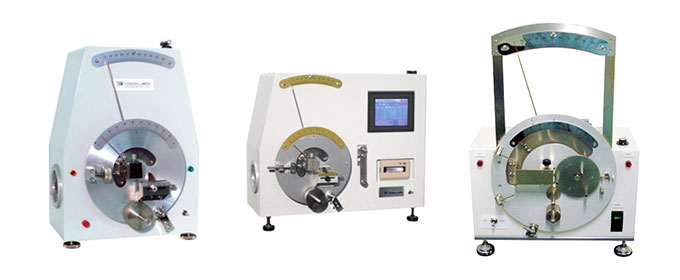

We are now available 3 kinds of the Olsen Type Stiffness Tester made in Japan, manufactured by Yasuda Seiki Seisakusho – the heavy load type, digital version of the heavy load type, and the Light load type. For more details please contact us.
| No.118 OLSEN TYPE STIFFNESS TESTER (HEAVY LOAD TYPE) |
| Moment |
Max. 5 lb⋅in (1 lb = 453 g) |
| Load Scale |
0 to 100 % (Scale 1 %) |
| Weight |
0.5 lb: 1 pc, 1 lb: 2 pcs |
| Load Position |
4” from Pivot |
| Angle Scale |
0 to 90° (Scale 1°) |
| Chuck Rotation Speed |
60°/min |
| Specimen |
W5±0.5mm or 13±0.5 mm, L60mm or more, T1.0±0.1mm or T2.0±0.2mm |
| Support Length |
7 to 50 mm |
| Chuck Width |
30 mm |
| Power Source |
AC 100 V, 1-Phase, 5A, 50/60 Hz |
| Dimensions/Weight |
Approx. W340 × D300 × H460 mm, 10kg |
| Reference Standard |
JIS-K7106, ASTM-D747 |
| No.118-D OLSEN TYPE STIFFNESS TESTER (HEAVY LOAD TYPE) (DIGITAL) |
| Moment |
Max. 5 lb⋅in (1 lb = 453 g) |
| Load Scale |
0 to 100 % (Scale 1 %) |
| Weight |
0.5 lb: 1 pc, 1 lb: 2 pcs |
| Load Position |
4” from Pivot |
| Angle Scale |
0 to 90° (Scale 1°) |
| Chuck Rotation Speed |
60°/min |
| Specimen |
W5±0.5mm or 13±0.5mm, L60mm or more, T1.0±0.1mm or T2.0±0.2mm |
| Support Length |
7 to 50 mm |
| Chuck Width |
30 mm |
| Power Source |
AC 200 V, 1-Phase, 3A, 50/60 Hz |
| Dimensions/Weight |
Approx. W570 × D350 × H490 mm, 15kg |
| Reference Standard |
JIS-K7106, ASTM-D747 |
| No.429 OLSEN TYPE STIFFNESS TESTER (LIGHT LOAD TYPE) |
| Load Scale |
0 to 100 % (Scale 1 %) |
| Weight |
1/4 oz, 1/2 oz, 1 oz, 2 oz, 4 oz, 8 oz 〈1 oz = 28.3 g〉 |
| Load Position |
1⋅1/2” and 3” from Pivot |
| Angle Scale |
0 to 90° (Scale 1°) |
| Chuck Rotation Speed |
60°/min |
| Specimen |
25 x 50 mm |
| Support Length |
1/4”, 1/2”, 1” |
| Chuck Width |
1” |
| Power Source |
AC 100 V, 1-Phase, 3A, 50/60 Hz |
| Dimensions/Weight |
Approx. W340 × D400 × H485 mm, 20kg |
| Reference Standard |
JIS-K7106, (L1018), L1096, ASTM-D747 |
