SHOCK MACHINE MDST Series

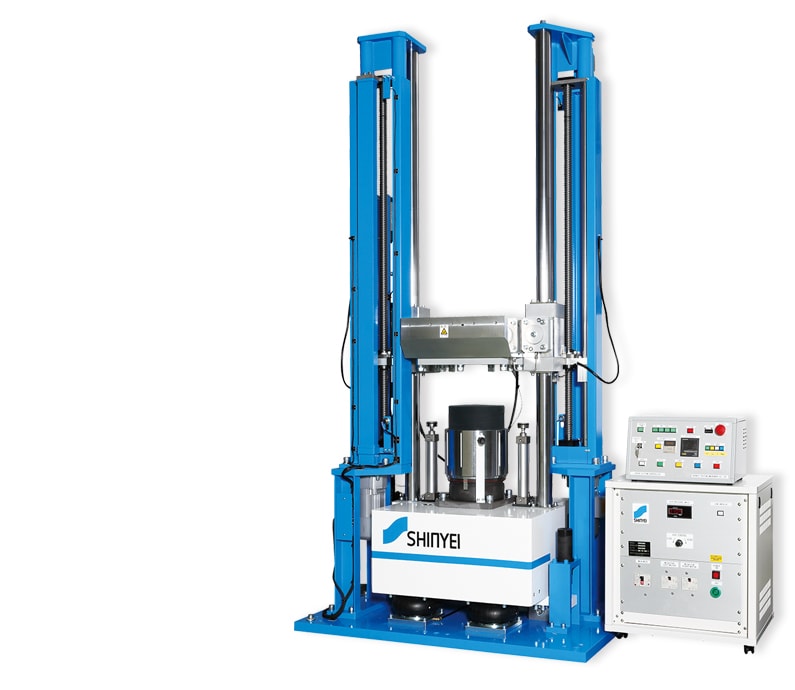

Multi Drop Shock Tester MDST Series
Multi-Drop Shock Testing System MDST-300, 500, 700, 900, 1100, 1500, 2000
MDST Series have a unique characteristic, called the “Multi-shock pulse generator” to apply multi shock test conditions via a single programmer. With that characteristic and a wide range of table sizes, the MDST Series can be used for various specimens. Available customization to meet your needs.
Features
- Multi test-conditions application
- High Reproducibility
- Easy Maintenance for Long Term Usage
- No-brainer Tester to operate
- Easy Setting with Simple Construction
- Set-up by Double-Layered Shock Absorber
Applied Standard
- JIS C 60068-2-27
- MIL-STD-810E
- IEC 60068-2-27
- JIS Z0202, ASTM D5487( with optional programmer)
Applications
- Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.
- Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.
Specification
| Model | MDST-300 | MDST-500 | MDST-700 | MDST-900 | MDST-1100 | MDST-1500 | MDST-2000 |
|---|---|---|---|---|---|---|---|
| Table size (W × D) |
Approx. 11.81" x 11.81" (300 x 300mm) |
Approx. 19.67" x 19.67" (500 x 500mm) |
Approx. 27.56" x 27.56" (700 x 700mm) |
Approx. 35.43" x 35.43" (900 x 900mm) |
Approx. 43.31" x 43.31" (1100 x 1100mm) |
Approx. 59.06" x 59.06" (1500 x 1500mm) |
Approx. 78.74" x 78.74" (2000 x 2000mm) |
| Specimen max weight | Approx. 110lbs (50kg) | Approx. 176lbs (80kg) | Approx. 220lbs (100kg) | Approx. 441lbs (200kg) | Approx. 772lbs (350kg) | Approx. 1102lbs (500kg) | |
| Shock pulse | Half-sine | ||||||
| Acceleration range | 100 ~ 3000m/s² (10 ~ 300G) | 100 ~ 2700m/s² (10 ~ 270G) | 100 ~ 2000m/s² (10 ~ 200G) | ||||
| Pulse duration range | 4 ~ 25ms | ||||||
| Size of main unit (W × D × H) |
Approx. 43.31" x 25.20" x 94.49" (1100×640×2400mm) |
Approx. 51.18" x 27.56" x 98.43" (1300 × 700 × 2500mm) |
Approx. 62.99" x 35.43" x 116.14" (1600 × 900 × 2950mm) |
Approx. 70.86" x 45.28" x 129.92" (1800 × 1150 × 3300mm) |
Approx. 86.61" x 51.18" x 122.05" (2200 × 1300 × 3100mm) |
Approx. 98.43" x 64.96" x 159.65" (2500 × 1650 × 4055mm) |
Approx. 118.11" x 90.55" x 145.28" (3000 × 2300 × 3690mm) |
| Weight of main unit | Approx. 2204lbs (1000kg) | Approx. 5732lbs (2600kg) | Approx. 9259lbs (4200kg) | Approx. 11464lbs (5200kg) | Approx. 19842lbs (9000kg) | Approx. 42108lbs (19100kg) | Approx. 70548lbs (32000kg) |
| Size of control unit (W × D × H) |
Approx. 20.47" x 19.67" x 37.40" (520 × 500 × 950mm) | ||||||
| Power supply | AC200V, 3-phasese, 10A | AC200V, 3-phasese, 20A | AC200V, 3-phasese, 30A | AC200V, 3-phasese, 40A | |||
| Applied Standards | JIS C 60068-2-27, JIS Z 0202, IEC 60068-2-27, MIL-STD-810F, JIS E 3015 | ||||||
Options
| Programmer for Half-sine wave | Specialized programmer of shock duration time 3 ~ 5ms. |
|---|---|
| Programmer of drop test for packaging | Specialized programmer of shock duration time 2 ~ 3ms. |
| Packaged freight fixing Jig | Use this jig for fix the edge and corner of packaging when a equivalent drop test conducted. |
| Shock Manager SM-500 |
Input the required shock acceleration, calculation of test conditions, measure shock acceleration and do various analysis of multiple channels. |
| Amplifer for high shock acceleration | High acceleration about 5000 ~ 50000m/s² are generated when shock duration time is 0.2 / 0.5 / 1 / 2 by HGP series. |
| Function for low shock acceleration | Shock pulse with low velocity, 1.4m/s or below, is generated |
| Air compressor | when you need. |
| Safety equipments | Mat switch / Patlite / Photoelectric switch / Safety fence etc. |
| Acceleration pickup | when you need. |
