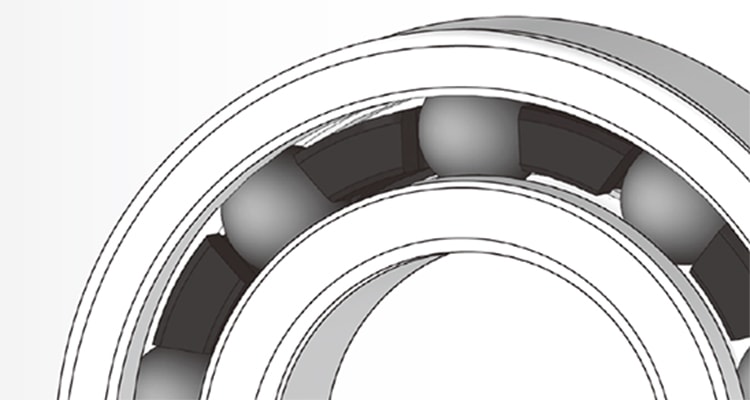

2C Series Ceramic Bearings
This application is Seawater-related Equipment, Plating Machine, Electronic Device, Equipment used in Low Temperature, Etching Equipment, etc.
Features
Corrosion Resistance
Usable in extremely corrosive environment, by using ceramics for outer and inner rings and balls, and fluorine resin for retainer.
Nonmagnetism
Completely nonmagnetic, by using ceramics.
No-lubricant
Usable without grease, even in environment where greases can not be used, by using fluorine resin for retainer.

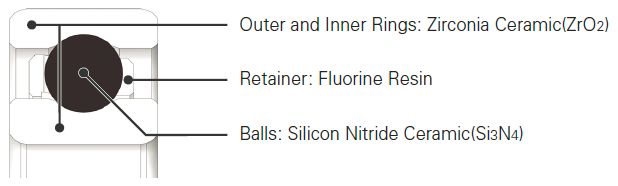

Materials
Specification
| Outer and Inner Rings | Zirconia Ceramic(ZrO2) |
| Balls | Silicon Nitride Ceramic(Si3N4) |
| Retainer | Fluorine Resin |
Applications
Seawater-related Equipment, Plating Machine, Electronic Device, Equipment used in Low
Temperature, Etching Equipment, etc.
Dimensions
| Bearing Numbers | Bore | O.D. | Width | Chamfer | Allowable Radial Load |
Allowable Rotation |
| d | D | B | r Min. | |||
| mm | mm | mm | mm | N | min-1 | |
| 2C 6000 CB CN3 | 10 | 26 | 8 | 0.3 | 290 | 3150 |
| 2C 6200 CB CN3 | 10 | 30 | 9 | 0.6 | 325 | 2760 |
| 2C 6001 CB CN3 | 12 | 28 | 8 | 0.3 | 325 | 2760 |
| 2C 6201 CB CN3 | 12 | 32 | 10 | 0.6 | 430 | 2570 |
| 2C 6002 CB CN3 | 15 | 32 | 9 | 0.3 | 355 | 2410 |
| 2C 6202 CB CN3 | 15 | 35 | 11 | 0.6 | 485 | 2220 |
| 2C 6003 CB CN3 | 17 | 35 | 10 | 0.3 | 380 | 2180 |
| 2C 6203 CB CN3 | 17 | 40 | 12 | 0.6 | 610 | 1950 |
| 2C 6004 CB CN3 | 20 | 42 | 12 | 0.6 | 600 | 1800 |
| 2C 6204 CB CN3 | 20 | 47 | 14 | 1.0 | 815 | 1640 |
| 2C 6005 CB CN3 | 25 | 47 | 12 | 0.6 | 640 | 1570 |
| 2C 6205 CB CN3 | 25 | 52 | 15 | 1.0 | 890 | 1450 |
| 2C 6006 CB CN3 | 30 | 55 | 13 | 1.0 | 840 | 1330 |
| 2C 6206 CB CN3 | 30 | 62 | 16 | 1.0 | 1240 | 1210 |
＊Allowable radial load and rotation are figures when using the bearings without lubricants.
Precautions
- Ceramics are extremely brittle to impact of dropping and others. Please handle with care.
- Fitting is class H tolerance range.
